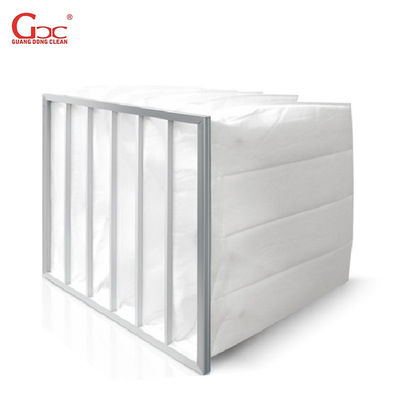

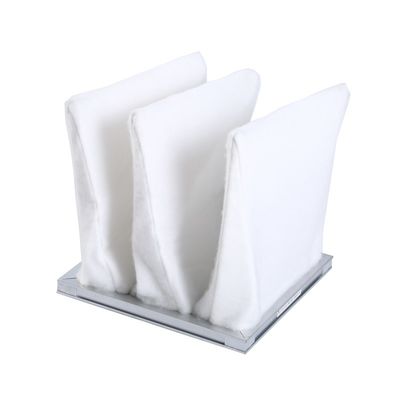

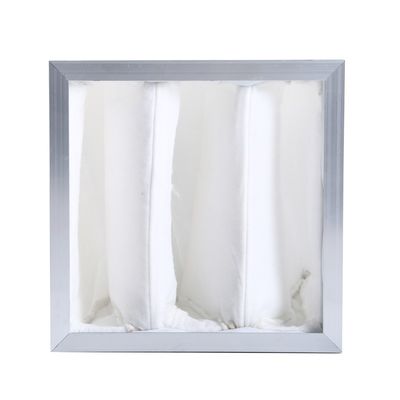

F5 Efficiency Cleanroom Air Filter , 1000m3/h Synthetic Pocket Air Filter

F5 Efficiency Cleanroom Air Filter , 1000m3/h Synthetic Pocket Air Filter

Product Details:
Place of Origin: Guangdong,China
Brand Name: GCC
Certification: ISO/GMP/CE
Model Number: AF
Detail Information
Place of Origin:
Guangdong,China
Brand Name:
GCC
Certification:
ISO/GMP/CE
Model Number:
AF
Product Name:
Cleanroom Air Filter Synthetic Pocket Air Filter
Keyword:
Air Filter
Type:
Pocket
Material:
Synthetic Bag With Alumium Frame
Function:
Air Purification
Remark:
Change Every 6 Months
Highlight:

High Light

Highlight:

F5 Efficiency Cleanroom Air Filter

,

1000m3/h Pocket Air Filter

,

1000m3/h Cleanroom Air Filter

Trading Information
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Wooden Box
Delivery Time:
14Days
Payment Terms:
T/T
Supply Ability:
5000Sets/Month
Product Description
Cleanroom Air Filter Synthetic Pocket Air Filter

GCC Synthetic Bag Filters now utilizes an internal stitch design engineered to withstand demanding applications. Years of development and the highest quality raw materials available are combined to create manufacturing air bag filters unmatched in performance and value. GCC Bag Filters extended surface bag filter was developed to provide dependable performance in commercial and industrial applications.

Synthetic Bag Filters not only only reduce up to 98% of allergens and microscopic particles for both homes and businesses but effectively eliminate allergies and sinus irritation that can cause watery eyes, itchy throat, coughing, and sneezing. We highly recommend filters for any asthmatics or respiratory sufferers who requirer premium indoor quality in the their home or office. Will attract and capture the small, allergy-aggravating micro-particles that can cause your family discomfort and collect more than 90-Percent of ALL microns of contaminants. Particles in indoor air are measured in microns, which are 1/1000 of a millimeter. Because of this high filtration and air flow restriction, heating and air conditioner systems should be checked to make sure they can handle filters rated MERV 14 and above.

Synthetic Bag Filters Characteristic
  1. The synthetic fiber media can hold a abundant dust with Ultrasonic sew bag,
  2. The efficiency stable in the whole life-span,
  3. Optimized V-collector structure has low resistance with long life-span,
Synthetic Bag Filters Material Composition And Operating Conditions
Material Fiberglass Paper With Aluminum Frame
Filter Bag Type Since The Bag Sewing
Filtration Efficiency F5,F6,F7,F8(EN779)
Permissible Max Relative Temperature 150℃
Permissible Max Relative Humidity 100%
Synthetic Bag Filters Parameters
Size (mm) Number of Bags Air Volume (m³/h) Filter Area (㎡) Initial Resistance (Pa) Initial Resistance (Pa) Efficiency
287*592*381 3 1000 1.58 <50 250-300 F5
<65 250-300 F6
<80 300-400 F7
<100 300-400 F8
490*592*381 5 1700 2.65 <50 250-300 F5
<65 250-300 F6
<80 300-400 F7
<100 300-400 F8
592*592*381 6 2050 3.18 <50 250-300 F5
<65 250-300 F6
<80 300-400 F7
<100 300-400 F8
Synthetic Bag Filters Application
  1. Used for cleanroom conditioning system, pre-filtration through fresh air conditioning connection.
  2. Primary filtration of central air conditioning system.
  3. Pre-filtration at the intake of air purification equipment.
  4. Primary filtration system.
  5. Ventilation system
