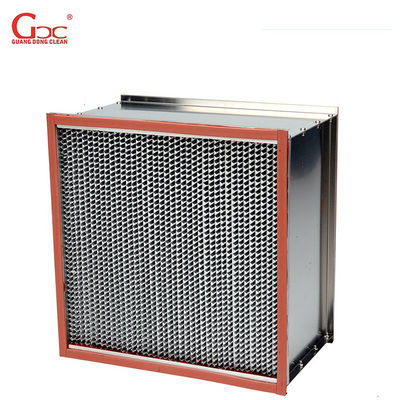

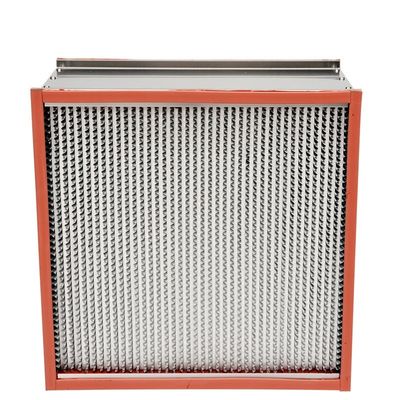

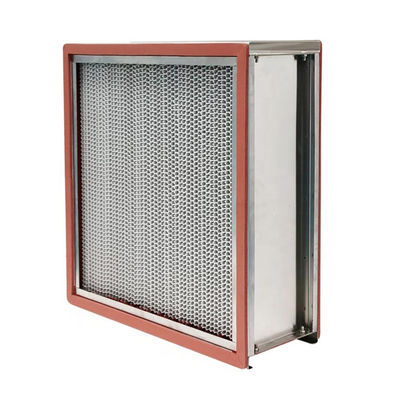

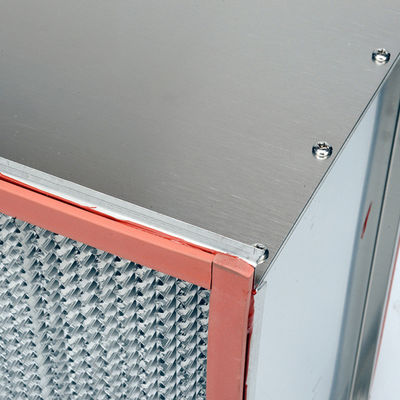

400℃ High Temperature Resistance Hepa Air Filter Box With Baffle Plate
High temperature HEPA filter with baffle plate is an air filter that can can allow to work at 400°C . It uses the stainless steel frame and high quality glass fiber filter paper. It's widely used for the ultra clean oven in food, medicine factories, auto plant painting spray system or spraying industry, oven, chemical, ultrasonic industry and other high temperature purification sites.
Features
1. With partition design, high efficiency, low resistance and large dust holding capacity,
2. High Temperature Resistance, can used under 400℃,
3. Suitable for variable air volume systems.
Material Composition And Operating Conditions
|
Material
|
Glass Fiber With Stainless Steel Frame
|
|
Filtration Efficiency
|
H13,H14
|
|
Permissible max relative temperature
|
400℃
|
|
Permissible max relative humidity
|
80%
|
Parameters
|
Size
|
Rated Air Rate
|
Filter Area
|
Initial Resistance
|
Final Resistance
|
Efficiency
|
|
320*320*150mm
|
250m³/h
|
2.59㎡
|
≤200Pa
|
400-600Pa
|
H13
|
|
320*320*220mm
|
500m³/h
|
4.08㎡
|
H14
|
|
484*484*150mm
|
600m³/h
|
6.00㎡
|
H13
|
|
484*484*220mm
|
1000m³/h
|
9.46㎡
|
H14
|
|
610*610*150mm
|
1000m³/h
|
9.59㎡
|
H13
|
|
915*610*150mm
|
1500m³/h
|
14.38㎡
|
H14
|
|
1220*610*150mm
|
2000m³/h
|
19.17㎡
|
H13
|
Applications Area
High temperature resistance hepa air filter box with baffle plate widely use for pharmacy, food, semiconductor, LCD and IC industry where production processes need ultra- clean oven cabinet or high temperature clean purification equipment and system.
