Product Description:

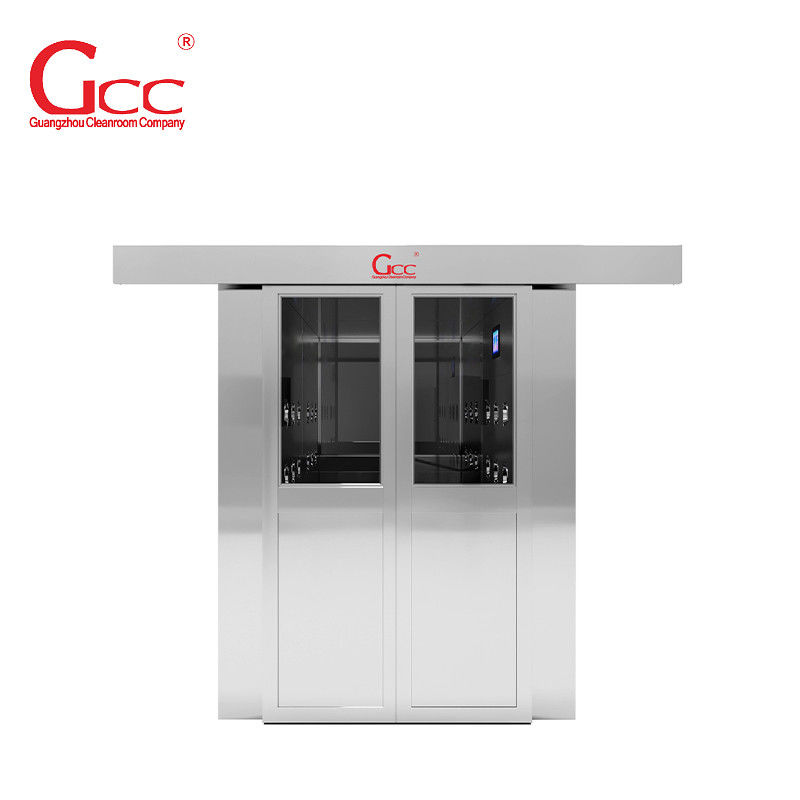

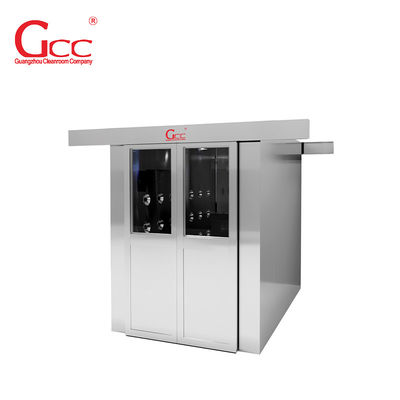

Sliding Door Air Shower
The sliding door air shower is essential for cleanrooms, featuring an automatic sliding door design for space-saving and better sealing. With HEPA filters, it removes particles from personnel or goods, ensuring a dust-free environment. Ideal for pharmaceuticals, food, and electronics industries, compliant with GMP standards. Made of 304 stainless steel, anti-corrosion and easy to clean, with airspeed up to 20-25m/s for rapid dust removal. Customizable in size, airflow, and functions to meet various cleanliness levels.
Technical Specifications
| Parameter Category |
Detailed Specifications |
| Door Type |
Automatic Sliding Door (Dual-Door Interlock System) |
| Construction Material |
304 Stainless Steel / Powder-Coated Steel (Optional) |
| Filtration Efficiency |
HEPA H14 Grade (99.99% @0.3μm particles) |
| Air Velocity |
20-25m/s (Adjustable) |
| Nozzle Configuration |
12-24 Stainless Steel Nozzles (Dual-Side Arrangement) |
| Cycle Duration |
10-99 Seconds (Programmable) |
| Power Requirements |
220V/50Hz or 380V/50Hz |
| Power Consumption |
1.2-2.5kW |
| Noise Level |
≤65dB |
| Cleanroom Standard |
ISO 14644-1 Class 5 / GMP Compliance |
| Customization Options |
- Size adjustments
- UV sterilization module
- ESD protection
- RFID access control |
Applications
Pharmaceutical Industry: GMP cleanrooms, sterile preparation areas
Electronics Manufacturing: Semiconductor and LCD clean production lines
Food Processing: Packaging zones, testing labs
Research Facilities: Precision instrument rooms, biosafety labs
FAQ:
Q1: What should I do if the resistance of the high-efficiency filter of the sliding door air shower is too high?
A: If the resistance of the high-efficiency filter is too high, it indicates that the filter is blocked, and a new filter needs to be replaced in a timely manner. Before replacement, you can first check the sealing condition of the filter to ensure that there is no air leakage.
Q2: What is the function of the door interlock function of the sliding door air shower?
A: The door interlock function can ensure that the two doors of the air shower cannot be opened simultaneously during operation, preventing un-air-showered personnel or goods from directly entering the clean area and ensuring the cleanliness of the clean area.
Q3: How to deal with the situation that the lights of the sliding door air shower are not on?
A: If the lights are not on, first check whether the light bulb is damaged. If it is damaged, just replace the light bulb. If the light bulb is normal, check whether there are faults in the power supply line and switch, and repair or replace them if there are faults.
