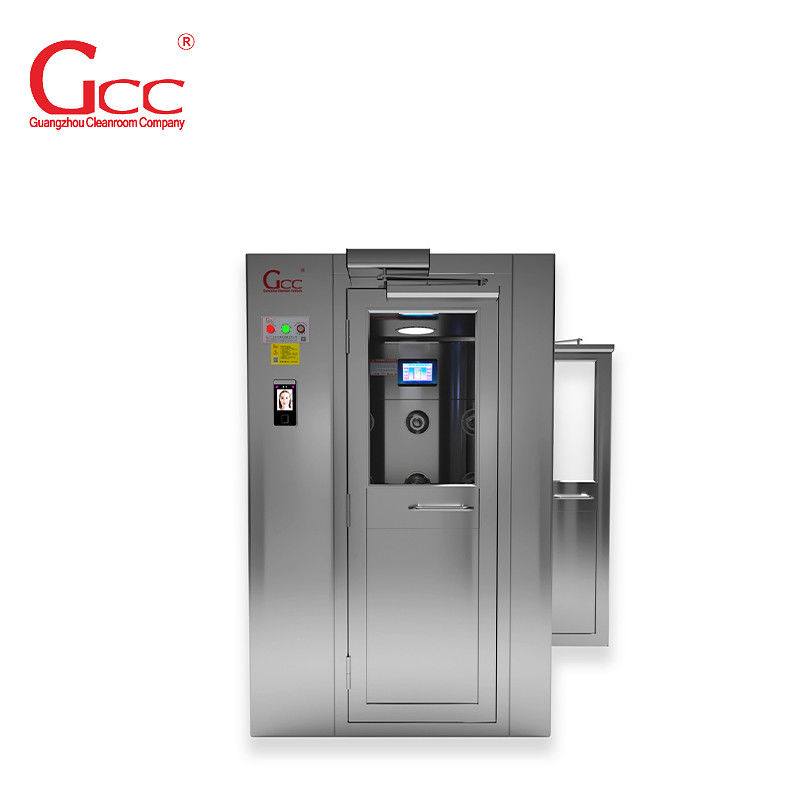

One Person 220Volt Portable Air Shower In Pharmaceutical Industry

Personal air shower is a purification equipment for personal or material, which uses high-speed (≥25m/s) clean air blown and clear the particles attached on personal clothing or material surface. Because two doors of the personal( Cargo) air shower can not be opened (interlocked) at same time, played as a role of gas chamber to prevent outside air entering the clean room and maintain the positive pressure of the clean room; Personal air shower in addition to there are certain purifying effect, it is as a person entering the clean zone boundaries, but also has a warning will help standardize personnel activities in the clean room.

• Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
• Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
• Made of stainless steel.
• Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
• Air velocity can up to 25·30m/s.
• Non -standard size. OEM is acceptable.

1. Material
2. Intercom
3. Ultraviolet sterilizing lamp/yellow light
4. Buzzer
5. Door
6. Size

1. Checking raw material before producing.
2. Checking one by one before the assembling
3. Checking one by one during the production
4. Have the random inspection before the delivery.

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

• Paint curing line, Fuel room, Dust-free workshop, Hospital operating room, Pharmaceutical workshop, Electronics factory.
