900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame

Name: 900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame
Brand: Guangzhou Cleanroom Construction Co., Ltd.
SKU: AF-VB
Price: 100,100.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GCC
Certification:	ISO/GMP/CE
Model Number:	AF-VB

Detail Information

Place of Origin:

Guangdong,China

Brand Name:

GCC

Certification:

ISO/GMP/CE

Model Number:

AF-VB

Product Name:

V Bank Compact Filter With Plastic Frame

Keyword:

V Bank Filter

Material:

Ultrafine Fiber Glass Paper With Plastic Frame

Function:

Air Filtration

Dust Holding:

1000g

Filtration Efficiency Level:

F6-F9

Permissible Max Relative Temperature:

70℃

Permissible Max Relative Humidity:

80%

Highlight:

High Light

Highlight:

900m3/H V Bank Air Filter Cleanroom Air Filter

Interval Cleanroom Air Filter

900m3/H V Bank Air Filter

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

Wooden Box

Delivery Time:

14Days

Payment Terms:

T/T

Supply Ability:

5000Sets/Month

Product Description

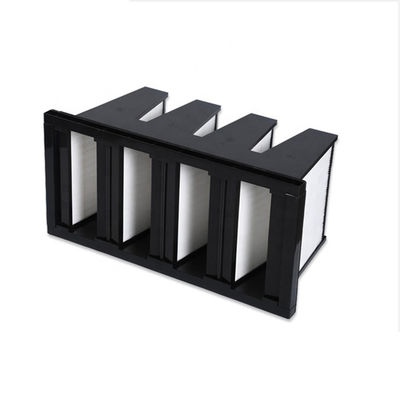

V Bank Compact Filter With Plastic Frame

V Bank Filte With Plastic Frame is mainly used for filtering 0.5 μ More than m dust particles, multi-V mini fold design, large filtering area, small resistance, long service life, waterproof superfine glass fiber filter material, polypropylene plastic frame can be completely burned, and flange frame can be interchanged with bag filter.

900m3/H Cleanroom Air Filter 2 Interval V Bank Plastic Frame 0

V Bank Compact Filter With Plastic Frame Features

High efficiency,
Low pressure drop,
Large air flow,
Large filter area,
Long service life.

Material	Ultrafine Fiber Glass Paper With Aluminum Frame
Dividers	PP Melt Spray Fiber Or Ultrafine Glass Fiber Filter Paper
Sealing Strip	EVA, Neoprene
Sealant	PU Two-Component Polyurethane AB Adhesive
Filtration Efficiency	F6, F7, F8, F9
Permissible max relative temperature	70℃
Permissible max relative humidity	80%

V Bank Compact Filter With Plastic Frame Parameters

Size (mm)	Interval	Rated Air Rate (m³/h)	Filter Area (㎡)	Initial Resistance (Pa)	Final Resistance (Pa)	Efficiency
287287292	2	900	4.63	≤60	250-300	F6
				≤80	300-400	F7
				≤100	300-400	F8
				≤120	400-450	F9
592592292	3	2850	15.03	≤60	250-300	F6
				≤80	300-400	F7
				≤100	300-400	F8
				≤120	400-450	F9

V Bank Compact Filter Applications

Optical electronic,
LCD,
Biological medicine,
Precision instruments film and optical fiber devices,
PCB Printing industry such as dust-free purification.
