Thermo static Prefabricated Clean Room ISO 5 Modular For Pharmaceutical Workshop

Certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
I'm Online Chat Now

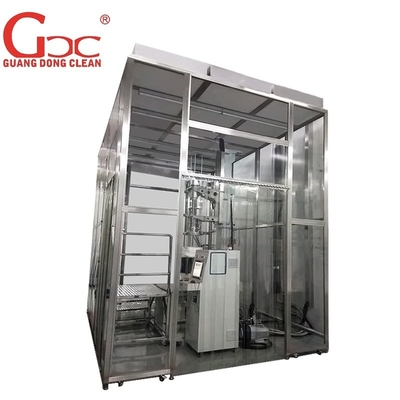

Thermo static Prefabricated Clean Room ISO 5 Modular For Pharmaceutical Workshop

Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop
Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop

Large Image :  Thermo static Prefabricated Clean Room ISO 5 Modular For Pharmaceutical Workshop

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: CE,ISO
Model Number: ASA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 Sets/Month

Thermo static Prefabricated Clean Room ISO 5 Modular For Pharmaceutical Workshop

Description
Keyword: Clean Room Application: Pharmaceutical Workshop, Electronic Workshop, Food Shop Etc
Material: Stalinite / Stainless Steel / Aluminum Style: Standard Design
Type: Modular Clean Room Function: Get Rid Of Dirt From People
Feature 1: Easy To Install And Save Time Feature 2: Modular Structure,easy To Improve Cleanliness Level
Feature 3: Prefabricated Voltage: 220V/50HZ
Warranty: 1 Year Condition: New
After-sales Service Provided: Online Support Remark: Can Be Customized
Highlight:

Thermo static Prefabricated Clean Room

,

Modular Prefabricated Clean Room

What is a Cleanroom?

A cleanroom is any controlled environment where the air is filtered to remove finite particles and contaminants from the room. A modular cleanroom relies on prefabricated components to deliver an environment that meets even the strictest cleanroom classification requirements. Modular cleanrooms offer the same benefits of a traditional cleanroom but are faster and more affordable to install, and are easily reconfigured or expanded to meet your facility’s changing needs.



Why Choose a GCC Modular Cleanroom?



When clean is critical, a GCC modular cleanroom is your best choice. Our modular cleanroom systems are precision-engineered with crisp edges, accurate cuts, and precisely mitered joints. This high-quality manufacturing method ensures a tight, sealed construction and assembly that ensures your cleanroom maintains peak performance and will meet annual certification standards.

Features

Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.

Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.

Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change into dust-free production.

Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame can be recycled.


Level Of Airborne Particulate Cleanliness In Prefab Cleanroom



FED STD 209E
Level >=0.1um >=0.2um >=0.3um >=0.5um >=5um Equivalent
1 35 7 3 1   ISO3
10 350 75 30 10   ISO4
100       100   ISO5
1000       1000 7 ISO6
10000       10000 70 ISO7
100000       100000 700 ISO8



ISO 14644-1 Cleanroom Standards
Level >=0.1um >=0.2um >=0.3um >=0.5um >=1um >=5um Equivalent
ISO1 10 2
ISO2 100 24 10 4
ISO3 1000 237 102 35 8   1
ISO4 10000 2370 1020 352 83   10
ISO5 100000 23700 10200 3520 832 29 100
ISO6 1000000 237000 102000 35200 8320 293 1000
ISO7       352000 83200 2930 10000
ISO8       3520000 832000 29300 100000
ISO9       35200000 8320000 293000 Room Air



Following options are available



1. Pass box

2. Air shower

3. ULPA filter

4. Sticky mats

5. Barometer

6. Gowning area

7. Pressure different control device

8. Transparent/grid PVC curtain

9. Thermo-static and humid-static air conditioning system.



Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop 0

Thermo static Prefabricated Clean Room  ISO 5 Modular For Pharmaceutical Workshop 1
