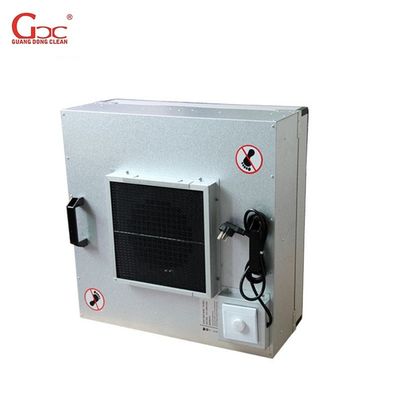

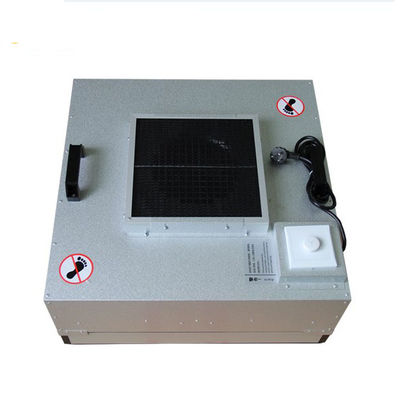

Fan Filter Unit (FFU) For Cleanroom
Fan Filter Unit (FFU) is a of type of motorized air filtering equipment. It is used to supply purified air to clean-rooms, laboratories, medical facilities or micro environments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large clean-rooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
Features
1. Two mounting options: hanging or floor-standing bracket. Both are extremely easy to use and replace.
2. The box is made using a spray-coated cold-rolled steel plate or stainless steel. Both are compact, sturdy and offer a beautiful exterior.
3. The direct-drive, high-efficiency centrifugal fan features a long service life, low noise, maintenance-free, weak vibration, and adjustable speed.
Parameters
| Item |
GCC-FFUA-1 |
GCC-FFUA-2 |
GCC-FFUA-3 |
GCC-FFUA-4 |
| Size (WxLxH) |
575x875x275mm |
920x615x275mm |
575x1175x275mm |
615x1225x275mm |
| Air Flow |
800~900m³/h |
800~900m³/h |
1100~1200m³/h |
1100~1200m³/h |
| Air Velocity |
0.35~0.55m/s |
| Total Pressure |
230Pa |
230Pa |
230Pa |
230Pa |
| Power |
100W |
100W |
100W |
100W |
| Weight |
25kgs |
27.5kgs |
34kgs |
37.5kgs |
Noise
(1m below the HEPA filter) |
55~63dB |
| Vibration |
0.2~0.7mm/s |
| Control Mode |
Manually Or Group Control Dy Computer |
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /
Differential Pressure Drop Alarm Device
|
| HEPA Filter |
Size (WxHxD) |
570x870x69mm |
915x610x69mm |
570x1170x69mm |
610x1220x69mm |
| Efficiency |
99.99% 0.3μm |
| Frame |
High Quality Anodized Aluminum |
| Initial Pressure Drop |
110Pa@0.45m/s±15% |
| Trait |
PU Foam Endless Gasket |
Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
