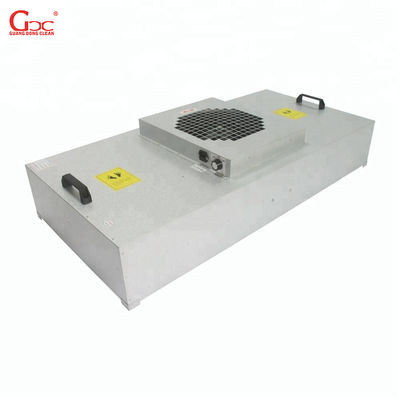

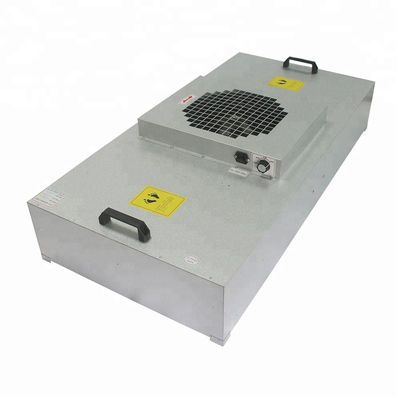

Cleanroom Fan Filter Unit Super Thin Galvalume FFU
A cleanroom fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.
Features
1. Overheating protection: Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .
2. The average air speed increase to 25%: Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air speed increase to 25%.
3. Life-long span: It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.
4. Space-saving:Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.
Parameters
| Item |
GCC-FFUT-1 |
GCC-FFUT-2 |
GCC-FFUT-3 |
GCC-FFUT-4 |
| Size (WxLxHmm) |
575x875x275 |
920x615x275 |
575x1175x275 |
615x1225x275 |
| Air Flow (m³/h) |
800~900 |
800~900 |
1100~1200 |
1100~1200 |
| Air Velocity (m/s) |
0.35~0.55 |
| Total Pressure (Pa) |
230 |
230 |
230 |
230 |
| Power (W) |
100 |
100 |
100 |
100 |
| Weight (kg) |
25 |
27.5 |
34 |
37.5 |
Noise dB
(1m below the HEPA filter) |
55~63 |
| Vibration (mm/s) |
0.2~0.7 |
| Control Mode |
Manually Or Group Control Dy Computer |
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /
Differential Pressure Drop Alarm Device
|
| HEPA Filter |
Size (WxHxDmm) |
570x870x69 |
915x610x69 |
570x1170x69 |
610x1220x69 |
| Efficiency |
99.99% 0.3μm |
| Frame |
High Quality Anodized Aluminum |
| Initial Pressure Drop |
110Pa@0.45m/s±15% |
| Trait |
PU Foam Endless Gasket |
Applications
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment.
