Class 1000 Cleanroom Fan Filter Unit

Name: Class 1000 Cleanroom Fan Filter Unit
Brand: Guangzhou Cleanroom Construction Co., Ltd.
SKU: FFUS
Price: 100,100.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GCC
Certification:	ISO/GMP/CE
Model Number:	FFUS
Document:	GCC-FFU-1200-Cleanroom-Layo...ut.pdf

Detail Information

Place of Origin:

Guangdong,China

Brand Name:

GCC

Certification:

ISO/GMP/CE

Model Number:

FFUS

Document:

GCC-FFU-1200-Cleanroom-Layo...ut.pdf

Keywrd:

Stainless Steel Fan Filter Unit

Acronym:

S/S FFU

Material:

Stainless Steel

Packaging:

OPP Bag With Carton

Delivery Inspect Video:

Provide Before Delivery

After Sale Serve:

Online Support

Highlight:

High Light

Highlight:

class 1000 Cleanroom Fan Filter Unit

class 1000 hepa fan filter unit

class 1000 clean room ffu

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

Wooden Box

Delivery Time:

14Days

Payment Terms:

T/T

Supply Ability:

5000Sets/Month

Product Description

Stainless Steel Fan Filter Unit

Cleanroom stainless steel fan filter units (S/S FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.

The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.

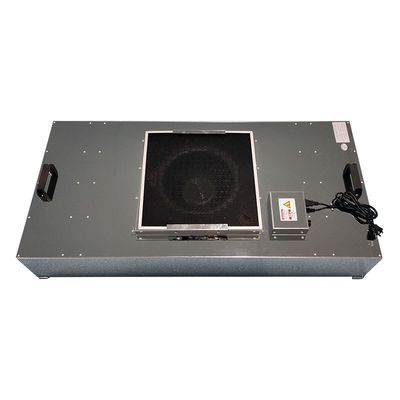

Class 1000 Cleanroom Fan Filter Unit 0

Features

Space-saving
High-performance configuration
Energy-saving
Remote control system
Use in series

Parameters

Item		GCC-FFUS-1	GCC-FFUS-2	GCC-FFUS-3	GCC-FFUS-4
Size (WxLxH)		575x875x275mm	920x615x275mm	575x1175x275mm	615x1225x275mm
Air Flow		800~900m³/h	800~900m³/h	1100~1200m³/h	1100~1200m³/h
Air Velocity		0.35~0.55m/s
Total Pressure		230Pa	230Pa	230Pa	230Pa
Power		100W	100W	100W	100W
Weight		25kgs	27.5kgs	34kgs	37.5kgs
Noise (1m below the HEPA filter)		55~63dB
Vibration		0.2~0.7mm/s
Control Mode		Manually Or Group Control Dy Computer
Options		DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device
HEPA Filter	Size (WxHxD)	570x870x69mm	915x610x69mm	570x1170x69mm	610x1220x69mm
	Efficiency	99.99% 0.3μm
	Frame	High Quality Anodized Aluminum
	Initial Pressure Drop	110Pa@0.45m/s±15%
	Trait	PU Foam Endless Gasket

Application

Cleanroom stainless steel fan filter units (S/S FFU) are suitable for semiconductor, electronic, flat panel display and disk drive manufacturers and optical, bio-industry industries such as clean room, clean bench, clean production line, assembled clean room and local hundred and other occasions and Other places with strict control over air pollution require low energy consumption and lower operating costs.
