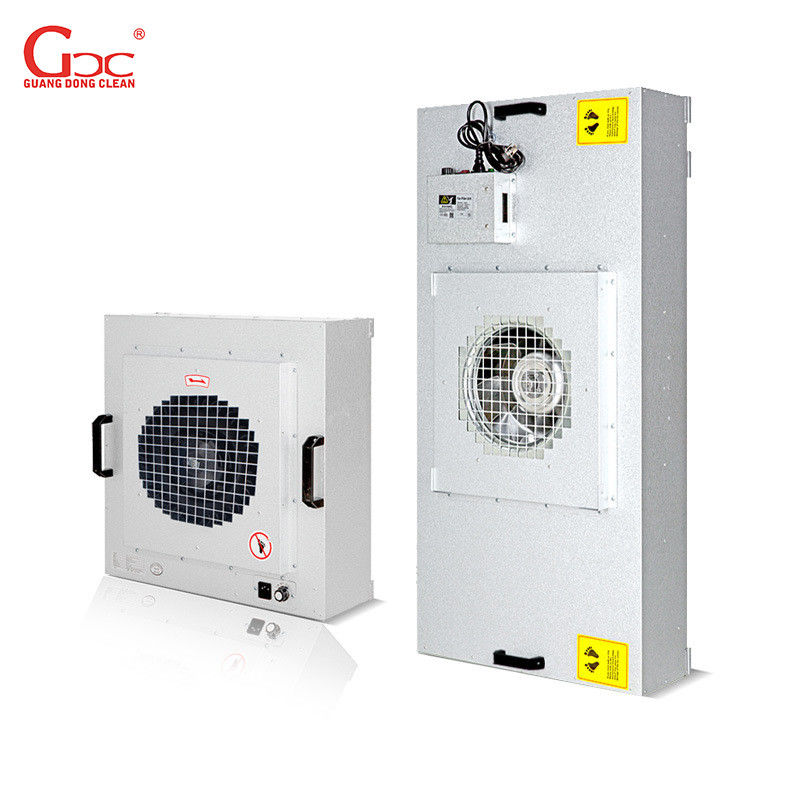

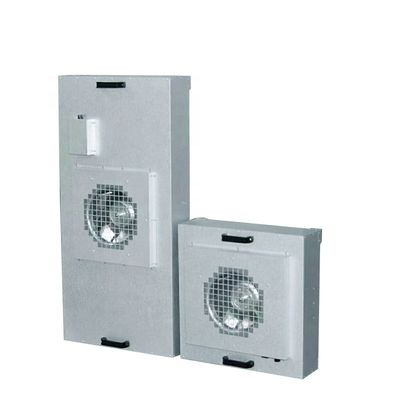

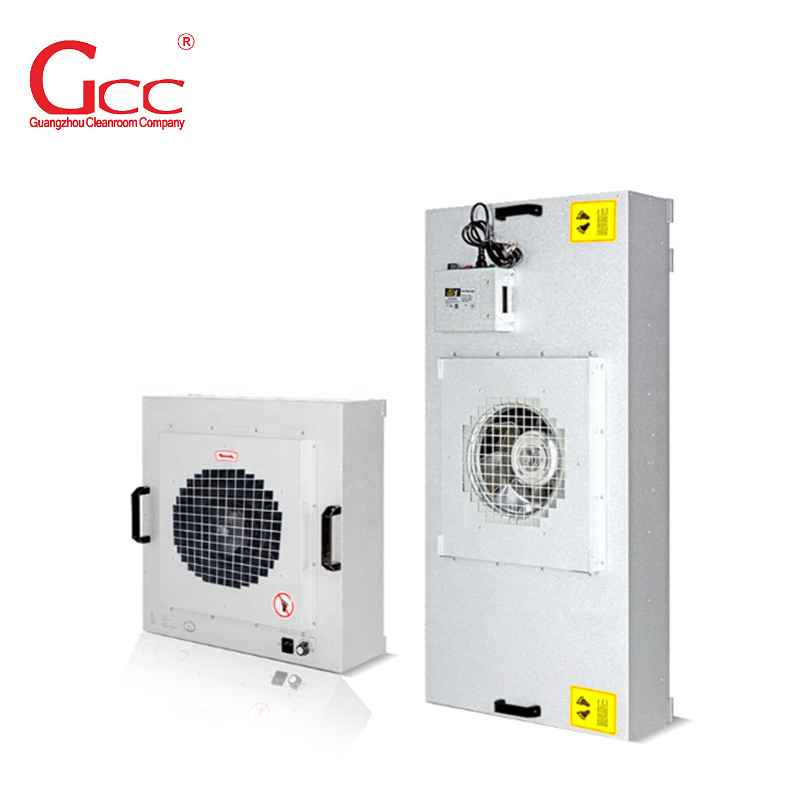

Cleanroom FFU
Fan filter units are stand-alone units with integrated HEPA-filter, fan and control system.
They supply purified air to cleanrooms and laboratories within the life-science, food-and beverage and microelectronic industries by removing harmful airborne particles from recirculating air. Unlike pressurized cleanroom ceiling plenums, FFUs create a positive room pressure that reduces the contamination risk from potential ceiling bypasses.
Features
1. High Energy Efficiency,
2. High Airflow Capacity,
3. Seismic Certification Preapproval.
Parameters
|
Item
|
GCC-FFUA-1
|
GCC-FFUA-2
|
GCC-FFUA-3
|
GCC-FFUA-4
|
|
Size (WxLxHmm)
|
575x875x275
|
920x615x275
|
575x1175x275
|
615x1225x275
|
|
Air Flow (m³/h)
|
800~900
|
800~900
|
1100~1200
|
1100~1200
|
|
Air Velocity (m/s)
|
0.35~0.55
|
|
Total Pressure (Pa)
|
230
|
230
|
230
|
230
|
|
Power (W)
|
100
|
100
|
100
|
100
|
|
Weight (kg)
|
25
|
27.5
|
34
|
37.5
|
|
Noise dB
(1m below the HEPA filter)
|
55~63
|
|
Vibration (mm/s)
|
0.2~0.7
|
|
Control Mode
|
Manually Or Group Control Dy Computer
|
|
Options
|
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /
Differential Pressure Drop Alarm Device
|
|
HEPA Filter
|
Size (WxHxDmm)
|
570x870x69
|
915x610x69
|
570x1170x69
|
610x1220x69
|
|
Efficiency
|
99.99% 0.3μm
|
|
Frame
|
High Quality Anodized Aluminum
|
|
Initial Pressure Drop
|
110Pa@0.45m/s±15%
|
|
Trait
|
PU Foam Endless Gasket
|
Services
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Quality Control
1. Checking raw material before producing.
2. Checking one by one before the assembling
3. Checking one by one during the production
4. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Application
Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
