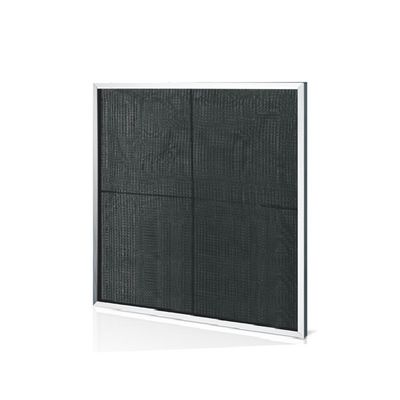

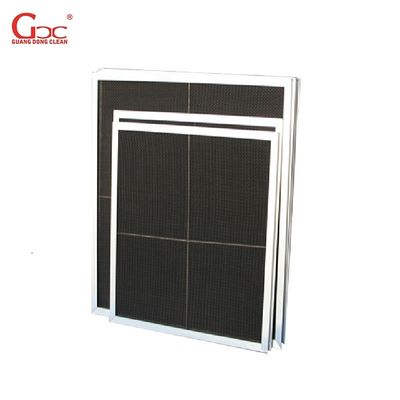

3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter

Certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
I'm Online Chat Now

3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter

3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter
3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter 3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter

Large Image :  3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter

Product Details:
Place of Origin: China
Brand Name: GCC
Model Number: AF-PF
Payment & Shipping Terms:
Minimum Order Quantity: 100 set
Price: Negotiation
Packaging Details: OPP Bag With Carton
Delivery Time: 7-14 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000 sets/month

3200m3/H Cleanroom Air Filter , 0.70m2 Area Nylon Mesh Pre Filter

Description
Keyword: Air Filter Style: Pre-Filter
Material: Nylon Mesh With Aluminum Frame Function: Air Filtration
Filtration Efficiency Level: Primary Remark: Suggest Change Every 2 Months
Highlight:

3200m3/h Cleanroom Air Filter

,

3200m3/h mesh pre filter

,

0.70m2 Area mesh pre filter

Cleanroom Air Filter Nylon Mesh Pre-Filter

Cleanroom air filter nylon mesh Pre-filters are installed in HVAC systems to remove contaminants from the air stream. They help improve indoor air quality and prevent the contaminants from building up in the equipment and damaging it. These filters are typically less than 6" deep and provide low to moderate levels of filtration. They can be used as pre-filters, they protect the more expensive final filters downstream from large particles, which extends the life of the final filters.



Features



1. Good abrasion resisitance and long lifespan.

2. Nylon net filter has less resistance.

3. Can repeat cleaning, high performance with cheap cost.



Material Composition And Operating Conditions



Material Nylon Mesh With Aluminum Frame
Max Operating Temperature 80℃
Max Operating Humidity 100%



Parameters


Size
(mm)
Rated Air Rate
(m³/h)
Filter Area
(㎡)
Initial Resistance
(Pa)
592*287*10 1600 0.34 <20
592*490*10 2600 0.58
592*592*10 3200 0.70
592*287*21 1600 0.34
592*490*21 2600 0.58
592*592*21 3200 0.70


Application



Cleanroom air filter nylon mesh Pre-filters are commonly used in office buildings, schools, universities, and work areas where surface finishing is performed.
