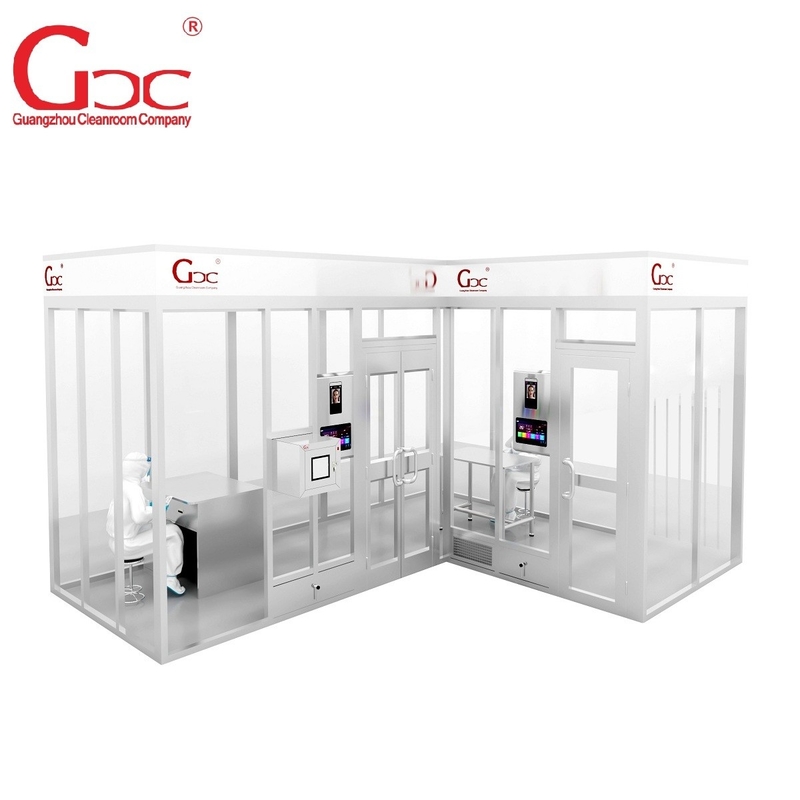

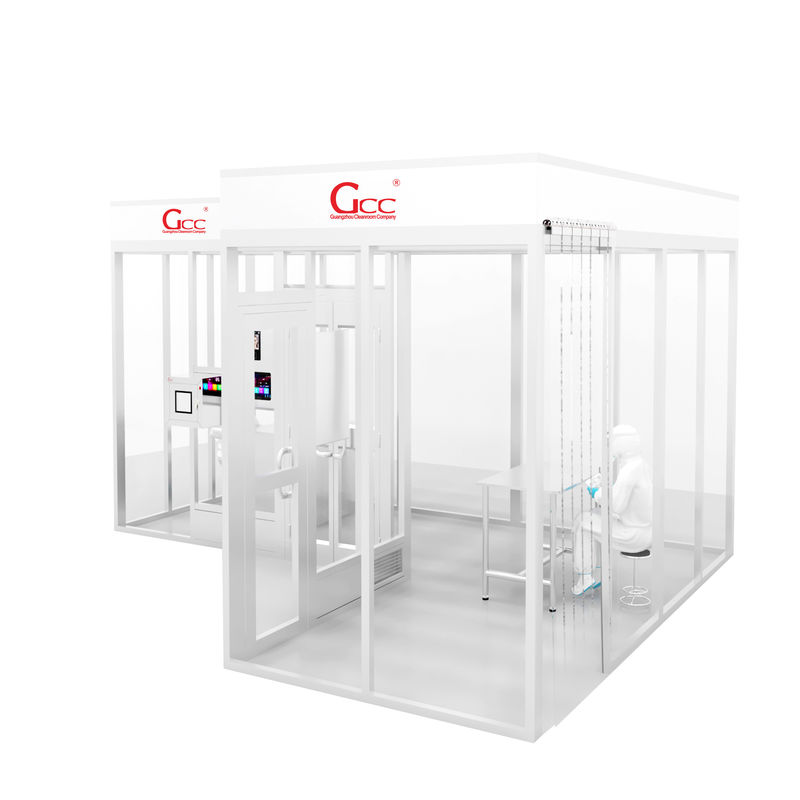

Class 1000 ISO6 Prefab Cleanroom / Prefabricated Softwall Cleanrooms

Class 1000 ISO6 Prefab Cleanroom / Prefabricated Softwall Cleanrooms
Class 1000 ISO6 Prefab Cleanroom / Prefabricated Softwall Cleanrooms

Large Image :  Class 1000 ISO6 Prefab Cleanroom / Prefabricated Softwall Cleanrooms

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 14-30 Workdays
Payment Terms: T/T, L/C
Supply Ability: 1000set/ month
Contact Now

Class 1000 ISO6 Prefab Cleanroom / Prefabricated Softwall Cleanrooms

Description
Keyword: Prefab Cleanroom Frame Material: Aluminum Profile, Stainless Steel Profile, Steel Profile
Wall Material: Magnesium Sandwich Panel Video Outgoing-inspectionv: Provided
Machinery Test Report: Provided After-sales Service Provided: Online Support
Highlight:

ISO6 Prefab Cleanroom

,

Class 1000 Prefabricated Softwall Cleanrooms

,

ISO6 class 1k cleanroom

Prefab Pharmaceutical Cleanroom

Prefab cleanroom is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, Prefab cleanroom's indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.



Advantages



1. Easy to disassemble and install according to drawings.


2. Customer can customized size and DIY the cleanroom area according to their space requirements.


3. The room area can be enlarged at any time, only increase a few GMP panels or doors.


4. Clean room is movable, low cost and time-consuming.



5. Clean grade: ISO5, ISO6, ISO7, ISO8



Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms



Level Maximum Particles/m3 Equivalent　
　 ≥0.1 μm ≥0.2 μm ≥0.3 μm ≥0.5 μm ≥1 μm ≥5 μm
ISO 1 10b d d d d e 　
ISO 2 100 24b 10b d d e 　
ISO 3 1000 237 102 35b d e Class 1
ISO 4 10000 2370 1020 352 83b e Class 10
ISO 5 100000 23700 10200 3520 832 d,e,f Class 100
ISO 6 1000000 237000 102000 35200 8320 293 Class 1,000
ISO 7 c c c 352000 83200 2930 Class 10,000
ISO 8 c c c 3520000 832000 29300 Class 100,000
ISO 9 c c c 35200000 8320000 293000 Room Air



Specification Table



Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed (m/s) 0.45m/s ±20% 0.45m/s ±20%
Temperature (optional) 18-28°C
Humidity (opiional) 50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw



Applications



Laboratory, Pharmaceutical Workshop, Electronic Chip Factory, Office, Food Factory



Why Choose Us



Gcc is one of the leaders in cleanrooms industry that can provide you with the most cost-effective cleanroom solutions according to your require or give you professional advice.

Tag:

PVC Wall Iso Class 5 Cleanroom,

220V pharmacy clean room,

220V ISO 5 Class 100 Clean Room
