Product Details:
|
| Key Word: | Laminar Flow Clean Shed | Material: | Magnesium Sandwich Panel |
|---|---|---|---|
| Video Outgoing-inspectionv: | Provided | Machinery Test Report: | Provided |
| After-sales Service Provided: | Online Support | ||
| High Light: | 220V 50Hz Prefabricated Clean Rooms,Class 100 Prefabricated Clean Rooms,220V 50Hz class 100 clean room |
||

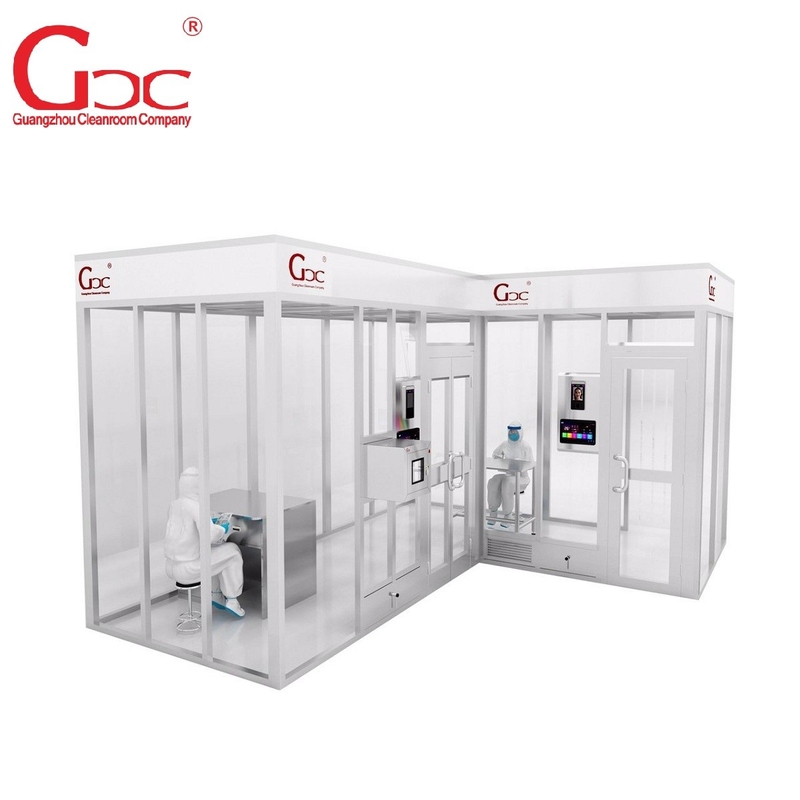

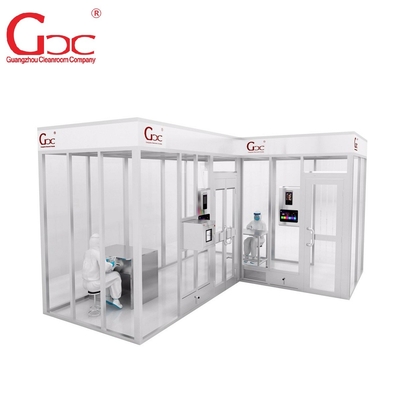

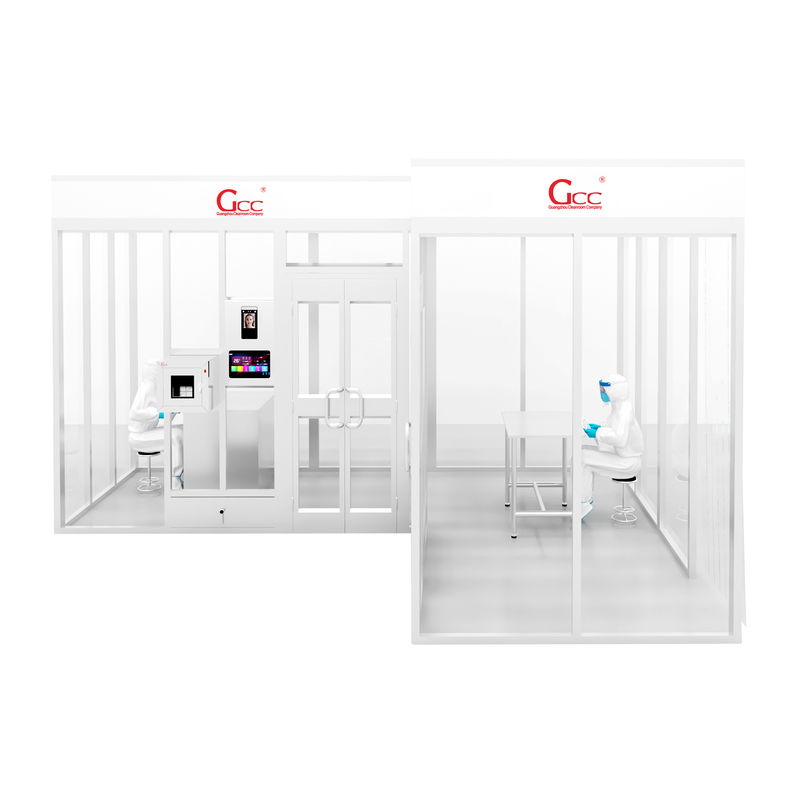

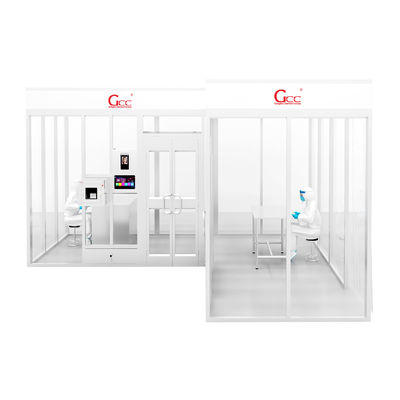

GCC has changed the traditional design concept of clean booth, mini-clean unit take the concept of modular integration design, this architecture is similar to SMIF form, it has variety of independent clean area, the only difference is that the transmission is not carried out by the connecting arm, but to operate in a closed clean room. It has the independent air conditioning and return air system. The advantage of this form is easy elastic spacing, low construction costs, compared with the traditional civil construction purification room, the cost is greatly reduced.
Level Of Airborne Particulate Cleanliness In Prefab Cleanroom
| FED STD 209E | ||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | Equivalent |
| 1 | 35 | 7 | 3 | 1 | ISO3 | |
| 10 | 350 | 75 | 30 | 10 | ISO4 | |
| 100 | 100 | ISO5 | ||||
| 1000 | 1000 | 7 | ISO6 | |||
| 10000 | 10000 | 70 | ISO7 | |||
| 100000 | 100000 | 700 | ISO8 | |||
| ISO 14644-1 Cleanroom Standards | |||||||
| Level | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Equivalent |
| ISO1 | 10 | 2 | |||||
| ISO2 | 100 | 24 | 10 | 4 | |||
| ISO3 | 1000 | 237 | 102 | 35 | 8 | 1 | |
| ISO4 | 10000 | 2370 | 1020 | 352 | 83 | 10 | |
| ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 |
| ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 |
| ISO7 | 352000 | 83200 | 2930 | 10000 | |||
| ISO8 | 3520000 | 832000 | 29300 | 100000 | |||
| ISO9 | 35200000 | 8320000 | 293000 | Room Air | |||
Parameters
| Clean Class Level | Laminar flow Clean Shed | ||||
| GCC-LFCS1500mm | GCC-LFCS2000mm | GCC-LFCS3000mm | GCC-LFCS5000mm | ||
| Size | 1500*2000*2400mm | 2000*3000*2400mm | 3000*4000*2400mm | 5000*5000*2400mm | |
| Material | Framework | Cold Rolled Steel , Aluminum , Stainless Steel | |||
| Around | Plexiglass, Soft Curtain, Anti-Static Strip Curtain | ||||
| Clean Class Level | 100 | 1000 | 10000 | 100000 | |
| HEPA filter | Size | 610*610*69mm | 1220*610*69mm | 1220*610*69mm | 1220*610*69mm |
| Efficiency | 99.99% | 99.99% | 99.99% | 99.99% | |
| Air Flow | 4000m³/h | 5040m³/h | 7560m³/h | 12000m³/h | |
| Pre filter | Size | Optional | |||
| Motor | Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Noise | 62dB | 62dB | 62dB | 62d | |
Applications
GCC laminar flow clean shed is used for the workshop quest the higher level of purification level, such as the assembly line working area and the assembly area of high-precision products.
