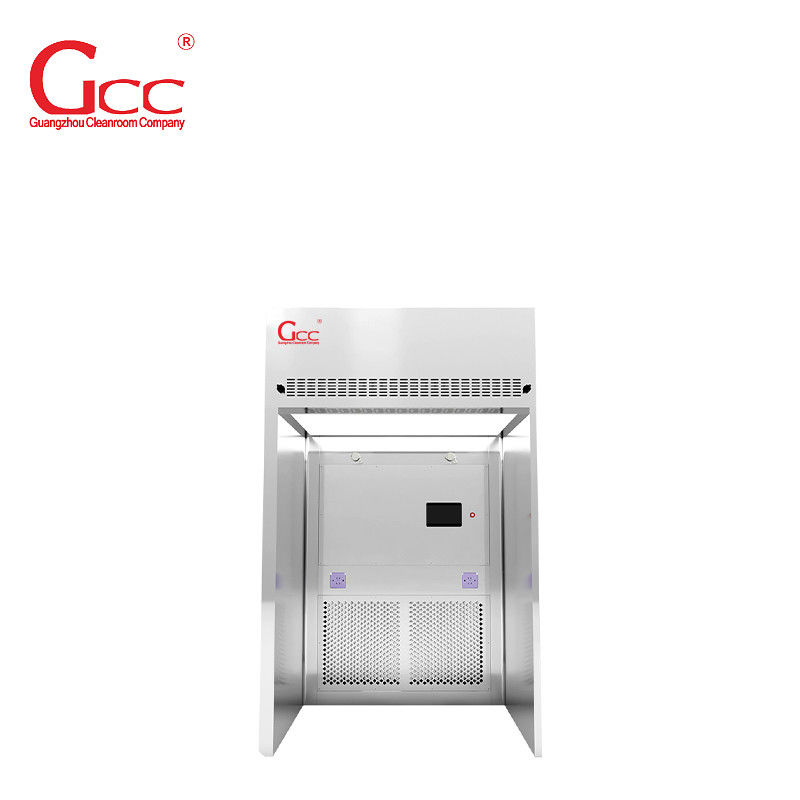

GMP Controlled Environment Weighing And Dispensing Booth

The Open-Front Containment Weighing Booth is a specialized workstation designed for the safe and efficient handling of hazardous powders, APIs (Active Pharmaceutical Ingredients), and chemicals in controlled environments. Unlike traditional isolators with glove ports, this gloveless design offers operator flexibility while maintaining containment through advanced airflow engineering.

1. Negative Pressure System

   Operates under negative pressure to ensure airborne particles are contained within the booth.

   Air is continuously drawn through the open front, preventing contaminants from escaping into the operator’s breathing zone.

2. Vertical Laminar Airflow

   Clean air flows vertically from top-mounted HEPA filters down to the work surface.

   Creates a unidirectional airflow pattern, capturing and filtering contaminated air before recirculation or exhaust.

3. HEPA Filtration

   Equipped with HEPA H14 filters (99.995% efficiency at 0.3 µm) to trap hazardous particles.

   Pre-filters extend HEPA filter lifespan by capturing larger particulates.

4. Open-Front Design

   No glove ports or physical barriers, allowing direct access to materials.

   Ideal for tasks requiring frequent material handling or large-scale weighing.

• HEPA Filtration System – Ensures clean and safe working air.
• Vertical Laminar Airflow – Maintains unidirectional airflow for contamination control.
• GMP and ISO Compliance – Suitable for pharmaceutical and chemical environments.
• Stainless Steel Construction – Durable, corrosion-resistant, and easy to clean.
• Customizable Configurations – Tailored to specific production needs.
• Energy-Efficient Operation – Reduces operating costs.
• Integrated Safety Features – Protects operators and materials.
• Optional Accessories – Additional options to enhance workflow.
