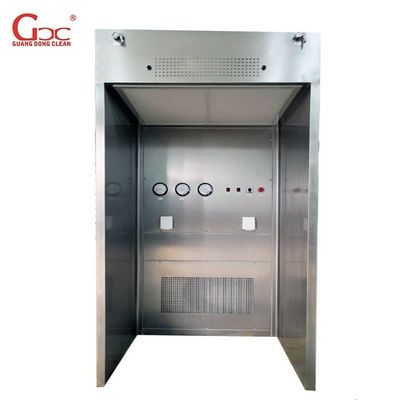

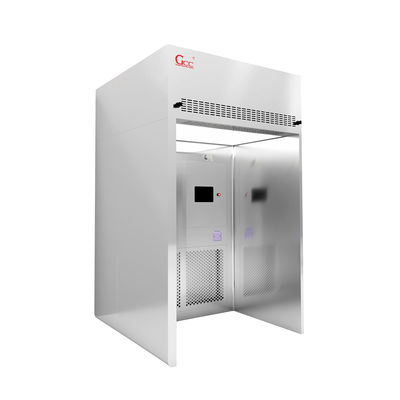

Anti Corrosion Stainless Steel AISI 304 Liquid Dispensing Booth For Vaccine

Liquid Dispensing Booth For Vaccine Manufacturers

Dispensing/Sampling Booth provides a safe, HEPA Filtered environment, for the dispensing of hazardous drug powders. Air is pulled away from user thru rear-wall pre-filters, trapping powders; recirculating air through ceiling mounted high efficiency particulate air (HEPA) filter rated 99.99% efficient at 0.3 microns.) protects the operators from toxic chemicals / raw materials used for manufacturing of tablets, medicines, capsules etc from external contamination during the process of weighing or measuring. It is ideal where a high degree of flexibility is desired. Containment is achieved by air movement. The product also known as Pharmaceutical Sampling Booth and Pharmaceutical Dispensing Booth.

Features

1. Designed in accordance with WHO-GMP.
2. 3-Stage Filtration like Prefilter , Fine Filter , HEPA filter .
3. Heavy duty Low noise motor blower assembly .
4. Suitable to accommodate to floor & table top for keeping weight machine5. Negative pressure inside the booth prevents the escape of fine 5. 5. 5. powder from the work area.
6. Fully integrated system.
7. Easy installation & economical.
8. Stainless steel AISI 304 structure.
9. Dynamic gasket to guarantee the perfect sealing of the filters.
10. Down cross is equipped with N°3 fans with AC frequency control.
11. Corrosion resistant exterior and interior.
12. Sturdy construction

Quality Control

Factory test include:

--appearance testing
--functional test and visual inspection
--air velocity testing
--noise testing

Applications

Pharma Industry, Healthcare Industry, Vaccine Manufacturers

Method of Use

Before debugging, we must verify that the connection of the wires is correct, and the debugging personnel to be familiar with the instrument. And we should read the instruction carefully.
