Product Description:

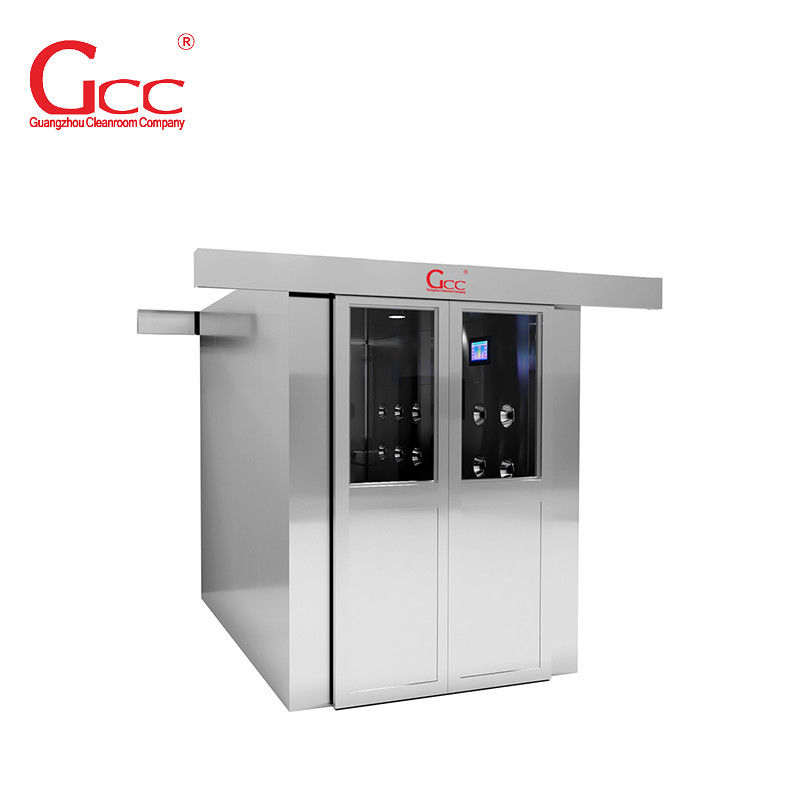

Sliding Door Air Shower
Made of 304 stainless steel, this sliding door air shower resists rust and corrosion, ideal for humid or harsh environments. Modular design for easy installation and low maintenance. Adjustable airflow (15-25m/s) and interlock system to prevent air turbulence. Optional UV sterilization for higher cleanliness (ISO 14644-1 Class 5 compliant).
Technical Specifications
| Parameter Category |
Detailed Specifications |
| Door Type |
Automatic Sliding Door (Dual-Door Interlock System) |
| Construction Material |
304 Stainless Steel / Powder-Coated Steel (Optional) |
| Filtration Efficiency |
HEPA H14 Grade (99.99% @0.3μm particles) |
| Air Velocity |
20-25m/s (Adjustable) |
| Nozzle Configuration |
12-24 Stainless Steel Nozzles (Dual-Side Arrangement) |
| Cycle Duration |
10-99 Seconds (Programmable) |
| Power Requirements |
220V/50Hz or 380V/50Hz |
| Power Consumption |
1.2-2.5kW |
| Noise Level |
≤65dB |
| Cleanroom Standard |
ISO 14644-1 Class 5 / GMP Compliance |
| Customization Options |
- Size adjustments
- UV sterilization module
- ESD protection
- RFID access control |
Applications
Pharmaceutical Industry: GMP cleanrooms, sterile preparation areas
Electronics Manufacturing: Semiconductor and LCD clean production lines
Food Processing: Packaging zones, testing labs
Research Facilities: Precision instrument rooms, biosafety labs
FAQ:
Q1: Are the doors of the sliding door air shower automatic or manual?
A: There are generally two types of sliding doors for the sliding door air shower: automatic sliding doors and manual sliding doors. The automatic sliding doors can be automatically opened and closed through infrared sensors or other sensing devices, which is convenient to use. The manual sliding doors need to be pushed and pulled manually.
Q2: What should be paid attention to when installing the sliding door air shower?
A: When installing, make sure that the installation ground is flat, and leave enough space around the air shower for easy operation and maintenance. When connecting the power supply, pay attention to the correct voltage and phase sequence. The installation of the high-efficiency filter should be well sealed to prevent air leakage.
Q3: Is the noise of the sliding door air shower loud?
A: During normal operation, the noise of the sliding door air shower is generally between 65 - 75dB, which is within an acceptable range. If the noise is too loud, it may be due to reasons such as a fan failure or loose components, and it needs to be checked and repaired in a timely manner.
