Ductless Chemical Fume Hood

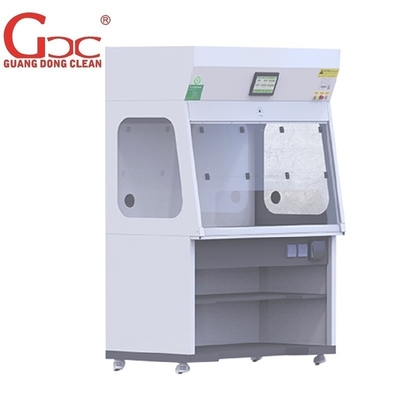

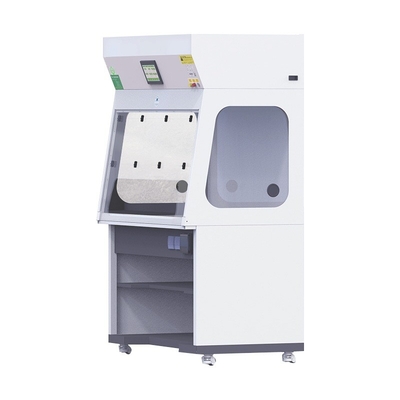

Portable Self-Contained Ductless Fume Cupboard with Carbon Filter
By GCC

Key Features

• Safe and Easy Operation – Fully automatic control system for stable and reliable performance
• Temperature & Humidity Monitoring – Real-time display with adjustable alarm settings
• Fan Monitoring System – Adjustable airflow, fan status monitoring, and fault alarms
• Face Velocity Monitoring – Real-time face air speed display with alarm reminders to prevent leakage
• Filter Saturation Monitoring – Online VOC monitoring with timely replacement alerts
• Automatic Airflow Control – Maintains face velocity at 0.4–0.6 m/s
• High Filtration Efficiency – Emissions comply with JG/T385-2012 and GBZ2.2-2007 standards
• Modular Filter System – Custom filters for gases, vapors, and particulates

Performance Standards

• Filtration efficiency: ≤ 0.5 ppm, < 1% TWA
• Face velocity: 0.4–0.6 m/s

Applications

Suitable for:

• Pharmaceutical GMP laboratories
• Constant temperature and humidity labs
• Sample preparation, weighing, and pretreatment
• Chromatography and analytical laboratories
• Teaching labs and classroom demonstrations
• Cleanrooms and forensic laboratories

Typical Operations

• Mixing, stirring, weighing, and liquid handling
• Sample preparation and ultrasonic cleaning
• Teaching demonstrations and analytical testing
• HPLC, COD experiments, and infrared analysis

Air Flow Pattern

Exhaust Principle

1. Dirty room air is drawn into the front of the fume hood.
2. Room air mixes with potentially contaminated air from chamber and is pulled upward by the bulding exhaust.

3. Air split at back of hood increases exhaust and reduces turbulence.
4. Contaminated air drawn from fume hood by building exhaust fan and leaves through air stacks on room

Fume Hood Parameters
