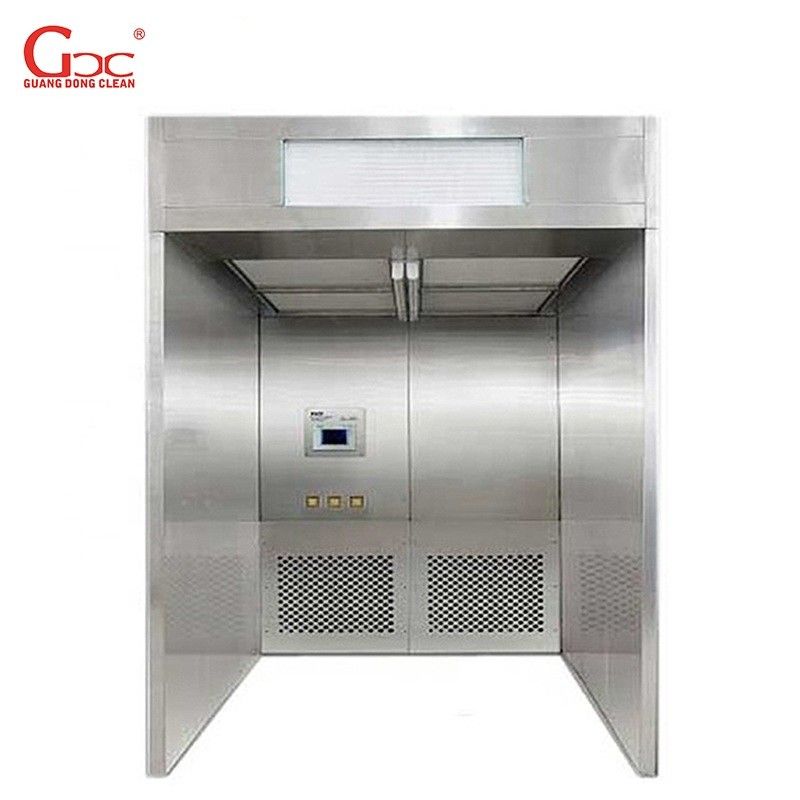

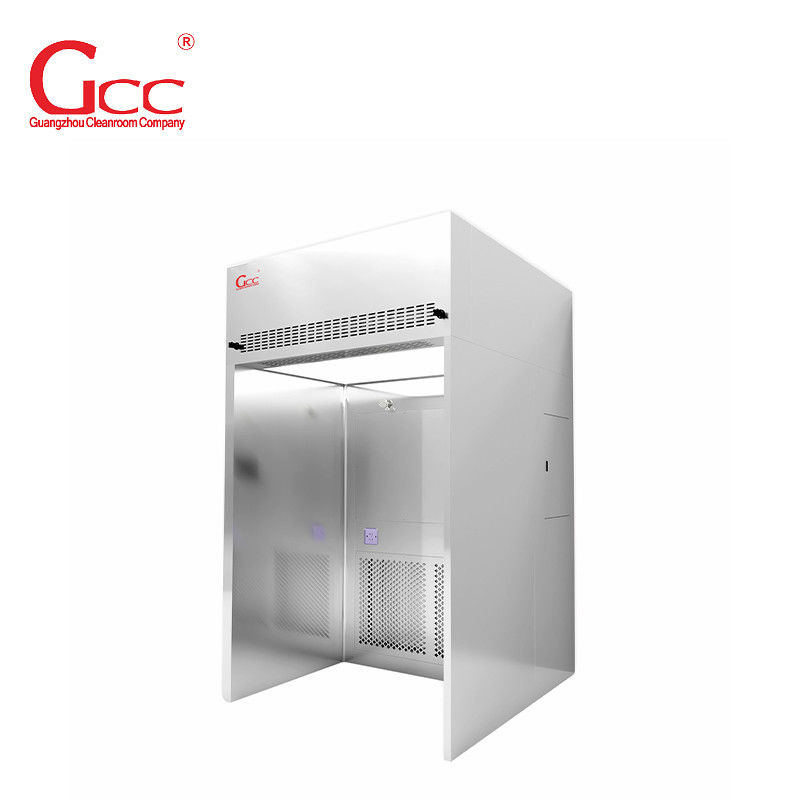

Pharmaceuticals Dispensing Booth
We manufacture and supply standard and customized (in terms of functionality and capacities) an exclusive line of Dispensing booth which is a kind of partial purifying equipment for filling, refilling, weighing, and sampling of raw material and compounds. It is provided with the HEPA filter, which prevents the airborne dust by down drought technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
The dispensing booth is also called a pharmaceutical sampling booth and pharmaceuticals weighing booth. Our Sampling booth comes with two to three validation port for Pre-filters and HEPA filters. DOP test of dispensing booth must be repeated every 6 months for better functioning of the Sampling booth. Pharmaceutical Dispensing booth used in the Pharmaceutical Industry in the field of Human Body injectables.
Working Principle
Downward Forced air of sampling booth extracts at low level into the booths cleanliness filtration system where contaminated particles recirculated into the booth Air Flow. In standard Working condition of Pharmaceutical dispensing booth air pulled through the main chamber to steel exhaust grills used to fasten the HEPA & PRE-filters fitted in the rear side of the booths, It suppresses airborne dust particles away from the uses breathing area.
Features
1. Customized design
2. A unique designed air duct effectively controls the noise.
3. Smooth transitions of the wall and ground can eliminate the blind angle.
4. The differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. An automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of the main working area
8. Sampling booth has primary filters, medium efficiency filters, and HEPA filter
Quality Control
Factory test include:
--appearance testing
--functional test and visual inspection
--air velocity testing
--noise testing
Applications
This instrument is applied for pharmaceutical, microbiological, scientific experiments, food industries and hospital operating rooms.
Method of Use
Before debugging, we must verify that the connection of the wires is correct, and the debugging personnel to be familiar with the instrument. And we should read the instruction carefully.
