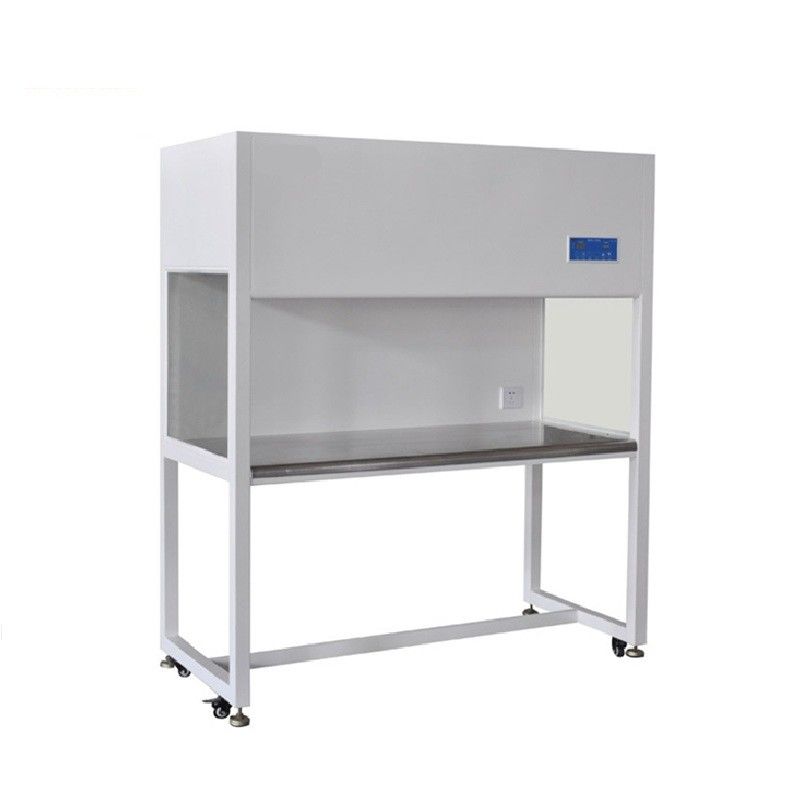

Vertical Laminal Flow Clean Bench
The Vertical Laminar Flow Clean Bench is designed to provide a clean and controlled working environment by delivering HEPA-filtered air vertically downward across the work surface. The uniform unidirectional airflow reduces airborne particles and protects samples, products, and sensitive processes from contamination.
GCC Vertical Laminar Flow Clean Benches provide ISO Class 5 (Class 100) cleanliness and are widely used in pharmaceutical laboratories, biotechnology research, medical facilities, electronics manufacturing, and other industries requiring a controlled clean environment.
Equipped with a reliable fan filter module and high-efficiency HEPA filtration system, the clean bench ensures stable airflow performance, low particle levels, and long-term operational reliability.
Key Features
ISO Class 5 (Class 100) Clean Environment
Provides a controlled low-particle workspace suitable for critical laboratory and production processes.
High-Efficiency HEPA Filtration
Equipped with HEPA filters with 99.99% efficiency at 0.3μm, effectively removing airborne particles and maintaining clean airflow.
Uniform Vertical Laminar Airflow
Clean air flows vertically from the top filter surface downward to the working area, minimizing turbulence and contamination risks.
Reliable Fan Filter Module
Integrated certified FFU system provides stable airflow performance with low noise operation.
Durable and Easy-to-Clean Construction
Available with powder-coated steel housing and stainless steel work surfaces for excellent durability and hygiene.
Flexible Customization Options
GCC supports customized sizes, materials, voltage specifications, additional functions, and OEM solutions according to project requirements.
Technical Specifications
| Item |
GCC-VLBC-960 |
GCC-VLBC-1200 |
GCC-VLBC-1500 |
| Internal Size |
L930×W600×H600mm |
L1170×W600×H600mm |
L1470×W600×H600mm |
| External Size |
L960×W780×H1580mm |
L1200×W820×H1580mm |
L1500×W900×H1580mm |
| Cleanliness Level |
ISO Class 5 (Class 100) |
ISO Class 5 (Class 100) |
ISO Class 5 (Class 100) |
| Air Velocity |
0.3–0.6 m/s |
0.3–0.6 m/s |
0.3–0.6 m/s |
| Airflow Volume |
1200 m³/h |
1800 m³/h |
2300 m³/h |
| Noise Level |
<65 dB |
<65 dB |
<65 dB |
| HEPA Efficiency |
99.99% @ 0.3μm |
99.99% @ 0.3μm |
99.99% @ 0.3μm |
| Voltage |
220V/50Hz |
220V/50Hz |
220V/50Hz |
| Power |
280W |
405W |
490W |
Optional Configurations
The Vertical Laminar Flow Clean Bench can be customized with:
- Stainless steel work surface
- Stainless steel cleanroom table structure
- Stainless steel interior side panels
- UV sterilization lamp
- Ionizing bar for static elimination
- Different voltage and electrical configurations
- OEM branding and private label service
Applications
Vertical Laminar Flow Clean Benches are suitable for applications requiring clean air protection and ISO Class 5 conditions, including:
- GMP pharmaceutical laboratories
- Biotechnology and life science research
- Medical and clinical laboratories
- Medical device manufacturing
- Tissue culture laboratories
- Electronics assembly and precision manufacturing
- Food and beverage testing
- Research institutions and universities
