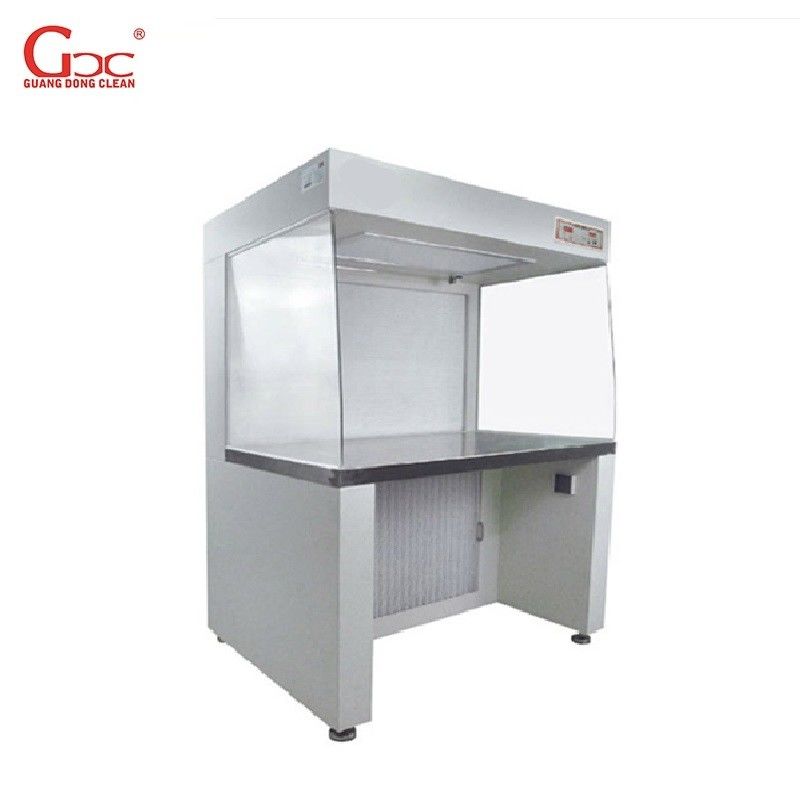

Horizontal laminar flow hoods (Clean Benches) provide a filtered airflow across the work area that protects the sample from airborne contamination.
Horizontal laminar flow hoods (Clean Benches), clean air moves from a filter located behind the work surface toward operator. Air flow direction depends on the type of process, operator safety, clearance requirements.
Features
1. Materials choice of color plate shell and stainless steel tabletop,
2. Consists of a certified fan filter module.,
3. HEPA Filter rated 99.99% efficient ,
4. Built-in fluorescent light.
Technical Parameters
| MODEL |
GCC -HLBC |
|
External size (mm)
(WXDXH)
|
1200x700x1580mm |
|
Work zone (mm)
(WXDXH)
|
1180x650x600mm |
| Purification rank |
FS209E 100Rank |
| Rating airflow(m3/h) |
1800m3/h |
| Filtration efficiency |
More than 99.99%@0.3um H13-H14 |
| Average wind speed |
0.3-0.6m/s |
| Intensity of illumination |
>300lx |
| pressure gauge |
America Dwyer pressure watch 1 pcs |
| UV Light |
1 pcs |
| Fluorescent lamp |
30Wx1 |
|
Material
(Option)
|
a. Entirety Sus201/304.
b. External is steel with power coated, Internal is SUS304
c. External is steel with power coated. Internal is SUS301
|
| Power |
450w |
| Noise |
<65dB |
| Power supply |
110v/ 60HZ 220V-240V AC 50HZ |
Applications
Horizontal laminar flow hoods can be utilized for the pharmaceutical, medical, food manufacturing and application like tissue culture, mushroom cultivation, electronics assembly and any other process required ISO level 4 or 5 of cleanliness.
Customer’s design is available.
