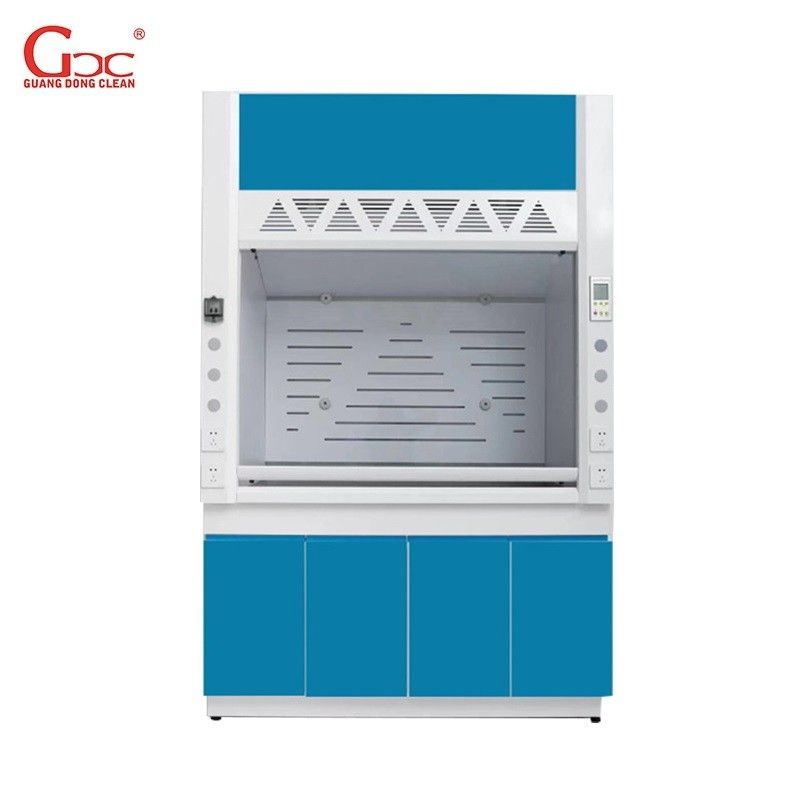

L000mm Low Flow Chemical Fume Hood , 220V 50HZ Lab Fume Cupboard

Low Flow Chemical Fume Hoods

GCC Fume Hoods are designed for safe containment, reducing the user’s risk of exposure to hazardous or toxic fumes, vapors or particles. It uses the same overall design structure as standard fume hoods, but maximize simplicity in lab planning, layout and HVAC coordination, which easily allows the addition of any popular low-flow option without requiring expensive retrofits. Our laboratory fume hoods have a variety of energy-saving features that help to reduce the amount of wasted conditioned air and possible re-work. These chemical fume hoods are available in standard sizes and types with the ability to custom design a hood tailored to your specifications.

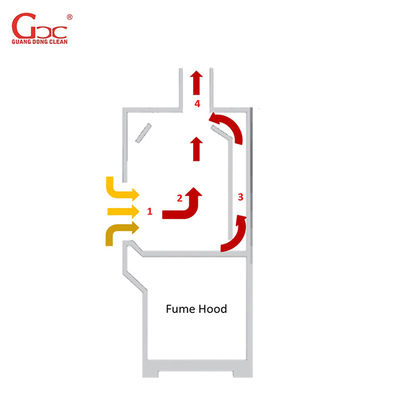

Air Flow Pattern

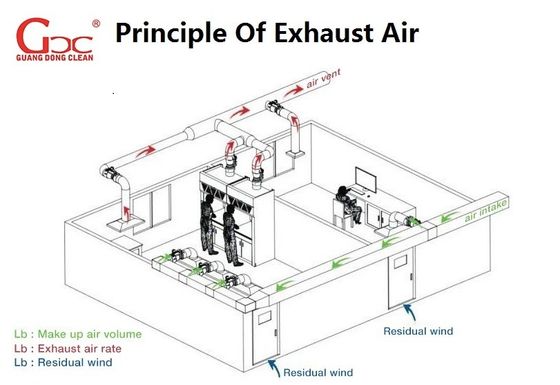

Exhaust Principle

1. Dirty room air is drawn into the front of the fume hood.

2. Room air mixes with potentially contaminated air from chamber and is pulled upward by the bulding exhaust.

3. Air split at back of hood increases exhaust and reduces turbulence.

4. Contaminated air drawn from fume hood by building exhaust fan and leaves through air stacks on room

Safety Note: Only provide personal protection. No HEPA filters to remove biological agents. Contaminates reduced to acceptable levels by dilution with environmental air.

Product Parameters

Product Features

1. Bypass system remains the same for all exhaust options,

2. The baffle is removable for cleaning,

3. Built-in scaffolding mounts,

4. Lift up airfoil,

5. Pull-out worktop,

6. Heavy gauge steel liner support system,
