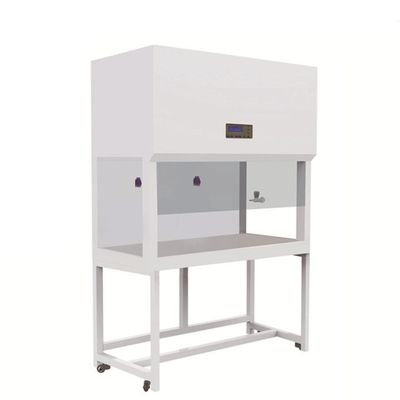

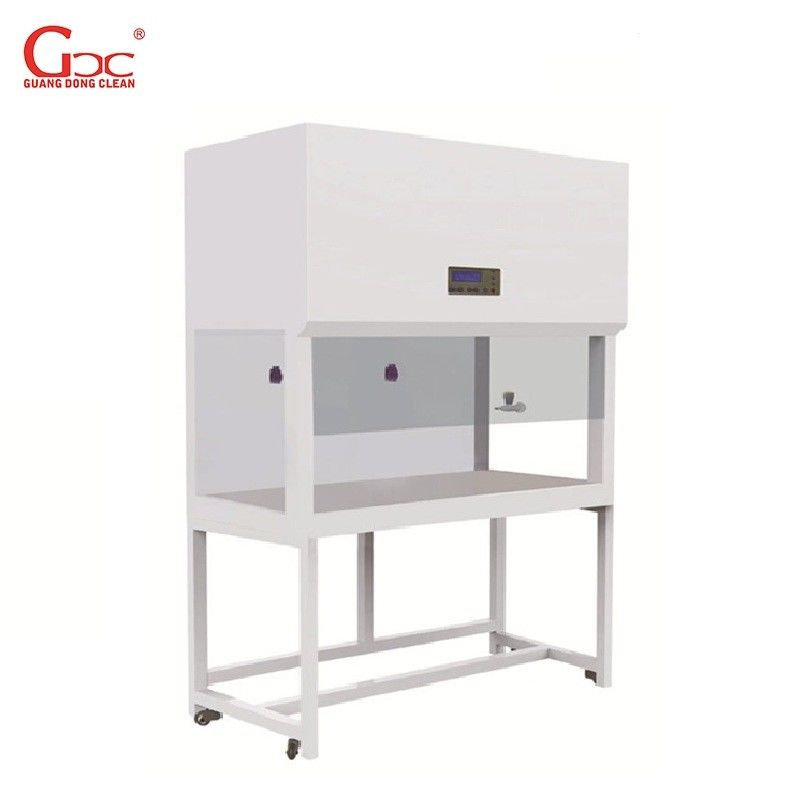

Vertical laminar flow clean bench is a laminar flow work cabinet or similar enclosure that provides filtered air across the work surface to protect against contamination.
The vertical laminar flow clean bench was originally created to supplement clean room technology and today is used across a broad spectrum of industries including research, manufacturing, aerospace, bioscience, pharmaceutical production and food processing.
Overview
Many medical preparations take place on a clean bench, which explains why you often see them hospitals, clinics, laboratories and medical facilities worldwide.
Simply, all of the air inside the confines of the bench flows in a single direction without backwash, typically an an area of turbulent airflow created by obstructions, equipment, or movement within the clean bench enclosure. Proper enclosure design helps prevent backwash and ensures that the vertical laminar air flow continues to protect work on the surface of the clean bench.
Features
1. Materials choice of color,
2. Consists of a certified fan filter module,
3. HEPA Filter rated 99.99% efficient,
4. Built-in fluorescent light.
Parameters
|
Item
|
GCC-VLBC-960
|
GCC-VLBC-1200
|
GCC-VLBC-1500
|
|
Internal Size
|
L930*W600*H600mm
|
L1170*W600*H600mm
|
L1470*W600*H600mm
|
|
External Size
|
L960*W780*H1580mm
|
L1200*W820*H1580mm
|
L1500*W900*H1580mm
|
|
Cleanliness Level
|
Level 100
|
|
Wind Speed
|
0.3~0.6m/s
|
|
Noise
|
＜65dB
|
|
Air Flow
|
1200m³/h
|
1800m³/h
|
2300m³/h
|
|
Efficiency
|
99.99%@0.3μm
|
|
Voltage
|
220V/50Hz
|
|
Power
|
280W
|
405W
|
490W
|
Options
1. Stainless steel attached worksurface,
2. Stainless steel cleanroom table,
3. Stainless steel interior side panels,
4 .UV sterilization light and ionizing bar.
Suggestion
1. Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2. HEPA filter: each one should be replacement in each half and one years.
