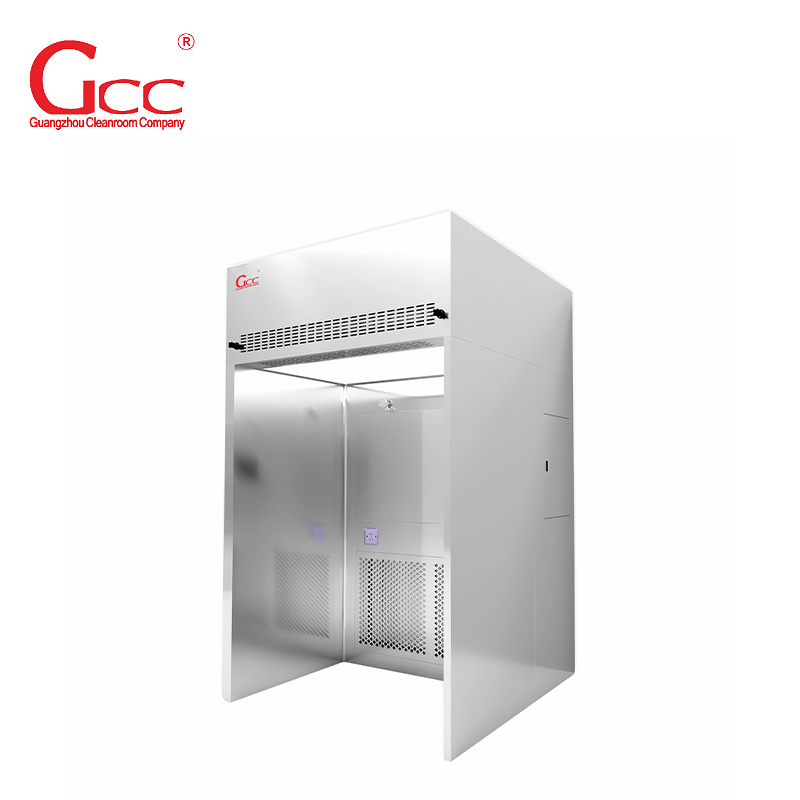

Biotechnology Weighing Booth
Weighing booth, aslo called sampling booth or dispensing booth, negative pressure booth or pharmaceutical booth, is a dedicated purification equipment for sampling, weighing and analysis. It can contain powders and particles within work area and prevent operator from inhaling them.
Technical Specifications
1. Materal of construction : GI Powder Coated / SS-304 / SS-316
2. Three Stage filtration
3. Pre Filter (90% down to 10 micron)
4. Intermediate Filter (Efficiency:95% down to 3 Microns).
5. Final Supply Filter HEPA Filter of H14 Grade.
6. Efficiency:99.99% down to 0.3 Microns.
7. Exhaust Filter with suitable size.
8. Efficiency: 99.99% down to 0.3 Microns.
9. Assembly the Motor Blower for Statically & Dynamically balanced with suitable
10. Air Cleanliness: Class ISO 5 (class 100)
11. Air Flow Rate:0.45 + 0.1m/sec.
12. Noise Level: Less than 70 DB ‘A’.
13. Vibration Level: Minimum.
14. ON/OFF Switches ( FL /BL / UV)
15. Differential Pressure : Magnehelic Gauge
16. Additional 3 Pins Switch’s & Socket
Applications
Product Dispensing
Large scale dispensing & weighing
Pharma industry
Dispensing of raw materials
Chemical industry
Tablets manufacturing
Healthcare industry
Vaccine manufacturers
Food processing industry
Biotechnology
Sampling booth
Pharma industry
Tablets Manufacturer
Vaccine manufacturers
Food processing industry
Biotechnology
