Introduction:Why Traditional Fresh Air Systems Are Not Enough
In cleanroom projects, fresh air systems are not just about ventilation. They directly affect pressure control, cleanliness stability, and overall HVAC energy performance.
Many facilities face common operational challenges:
Unstable fresh air volume causing pressure fluctuations
Unfiltered outdoor air increasing contamination risks
High energy consumption due to overloaded central HVAC systems
Complex system control leading to unstable operation
The root cause is the lack of independent and precise fresh air control.
A cleanroom fresh air cabinet is specifically designed to solve these issues.
What Is a Cleanroom Fresh Air Cabinet

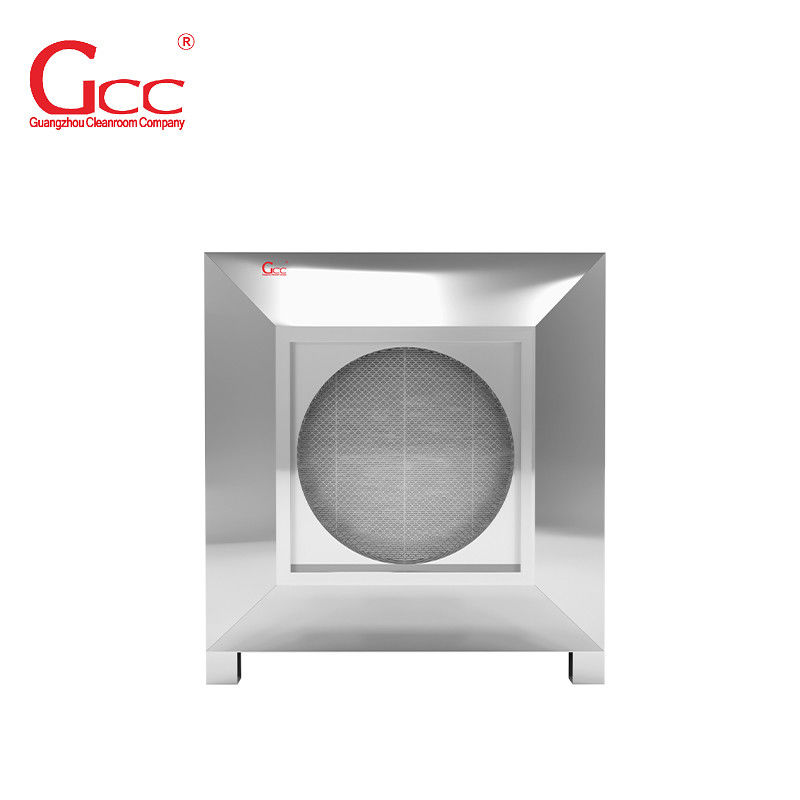

A cleanroom fresh air cabinet is an independent air handling unit designed to treat and deliver outdoor air into controlled environments.
With built in fans and filtration systems, it preconditions and stabilizes incoming air before it enters the cleanroom.
Compared to traditional systems, it offers better control, higher stability, and improved system performance, making it an essential component in modern cleanroom HVAC design.
Core Value in Cleanroom HVAC Systems
Stable and Controllable Air Supply
The integrated fan system ensures a consistent and reliable fresh air supply, independent of external environmental fluctuations.
Reliable Pressure Control Foundation
Cleanroom pressure control depends on stable airflow. The fresh air cabinet provides precise air volume to maintain positive or negative pressure between zones.
Air Pre Filtration and Purification
Equipped with multi stage filtration including H13 HEPA filters, it removes particles and airborne contaminants before air enters the cleanroom.
Reduced Energy Consumption
By pre treating incoming air, the system reduces the load on central HVAC units, improving overall energy efficiency.
Differences from Traditional Fresh Air Systems
Conventional systems rely heavily on centralized air handling, which limits flexibility and control.
In contrast, a fresh air cabinet offers:
Independent operation for improved system stability
Modular design for easy expansion and retrofit
Flexible installation for various layouts
Lower operating cost through energy efficient performance
Structural Design and Technical Features
The unit is constructed with high quality cold rolled steel with coating or optional stainless steel for enhanced durability and corrosion resistance.
It integrates high performance fans, multi stage filtration, and optimized airflow channels to ensure stable and uniform air distribution.
A side access panel design allows convenient maintenance and fast filter replacement, reducing downtime.
Technical Specifications
| Model |
GCC-FG-1000 |
GCC-FG-2000 |
GCC-FG-3000 |
GCC-FG-4000 |
GCC-FG-5000 |
| External Size(W*L*Hmm) |
800*800*1200 |
800*800*1200 |
1450*800*1350 |
1450*800*1500 |
1450*800*1700 |
| Fan Speed(m³/s) |
1000~2000 |
2000~3000 |
3000~4000 |
4000~5000 |
5000~7000 |
| Power(W) |
550 |
800 |
1100 |
2200 |
2200 |
| Material |
A3 Cold-rolled Steel Plate with Paint/Stainless Steel |
| Power Supply(V/Hz) |
380/50 |
| Operating NoisedB |
≤67 |
| Filter Level |
G1+H13 |
| Note: In addition to the above dimensions, non-standard customization from customers is also acceptable |
How to Select the Right Fresh Air Cabinet
In practical applications, selection should be based on:
Cleanroom classification and air change requirements
Room size and layout
Pressure control strategy
Temperature and humidity requirements
Energy efficiency targets
Proper selection not only affects initial investment but also determines long term operational stability and cost.
Typical Applications
Pharmaceutical manufacturing facilities
Hospital operating rooms and clean zones
Laboratories and biosafety environments
Semiconductor and electronics production
Food processing and packaging areas
GCC Cleanroom Solution Advantages
GCC specializes in cleanroom air system engineering and equipment manufacturing, providing complete fresh air solutions.
Extensive project experience
Custom system design capabilities
Compliance with international cleanroom standards
Support for global projects and partners
Comprehensive technical support and after sales service
We do not just supply equipment. We deliver complete engineering solutions.
Conclusion:From Equipment to System Upgrade
A cleanroom fresh air cabinet is not just a ventilation device. It is a critical component for achieving stable operation and precise environmental control.
By enabling independent air treatment and delivery, it significantly improves air quality, pressure stability, and energy efficiency.
For high standard cleanroom environments, it has become an essential system upgrade.
