Stainless Steel Electrostatic Interlocking Cleanroom Xenon Light Transmission Window / Pass Box

Name: Stainless Steel Electrostatic Interlocking Cleanroom Xenon Light Transmission Window / Pass Box
Brand: Guangzhou Cleanroom Construction Co., Ltd.
Price: 3,607.00 USD
Availability: InStock

All Products

Prefab Cleanroom
(42)

Cleanroom Air Shower
(60)

Cleanroom Pass Box
(37)

Laminar Flow Clean Bench
(31)

Weighing Booth
(19)

Cleanroom Fan Filter Unit
(35)

Clean Room Fume Hood
(24)

Cleanroom Air Filter
(23)

Air Filter Outlet
(8)

Fresh Air Cabinet
(4)

Laminar Flow Ceiling
(10)

Lab Room Equipment
(21)

Biological Safety Cabinet
(3)

Industrial Water Treatment Equipment
(9)

Chemical Fume Hood
(10)

Pharmaceutical Equipment
(21)

Best Products

Stainless Steel 220V 50HZ L600mm Cleanroom Pass Through Chambers

UL approved air tightness Pass Through Box Clean Room Equipment

CE Certified Electrical Interlock SS Pass Box / Cleanroom Transfer Hatch

Certification

I'm Online Chat Now

Stainless Steel Electrostatic Interlocking Cleanroom Xenon Light Transmission Window / Pass Box

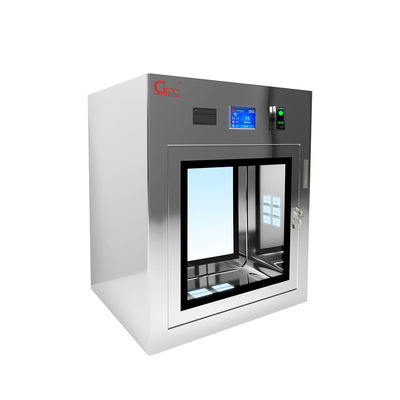

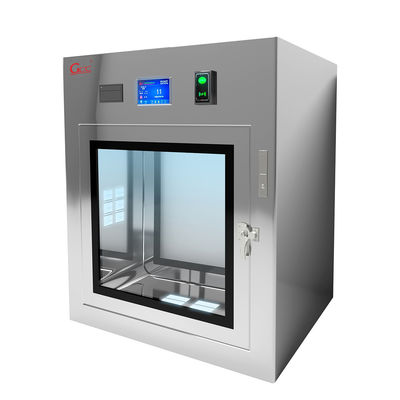

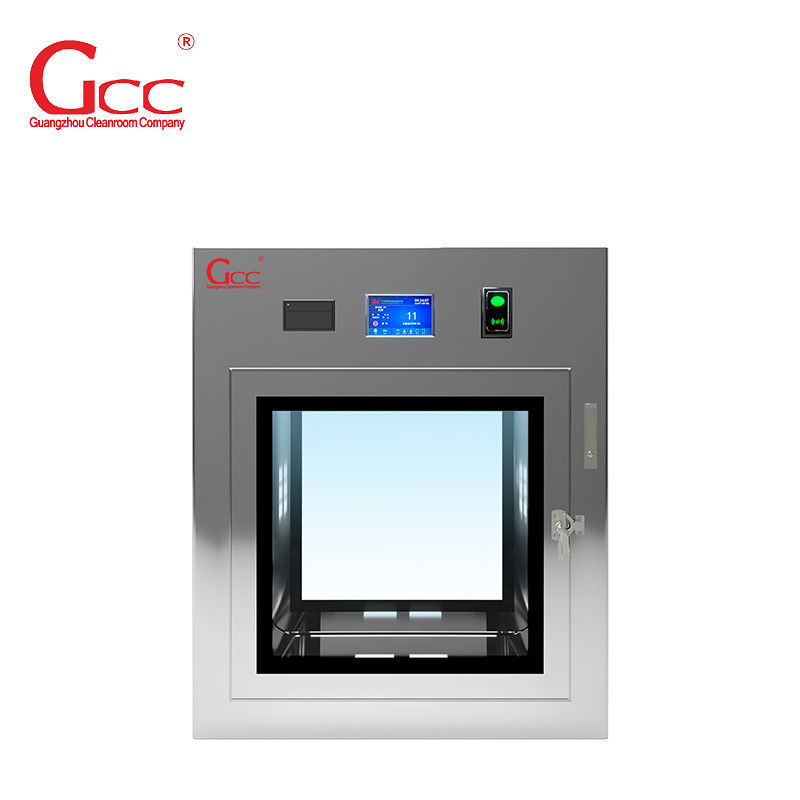

Large Image : Stainless Steel Electrostatic Interlocking Cleanroom Xenon Light Transmission Window / Pass Box

Product Details:

Place of Origin:	China
Brand Name:	GCC
Certification:	ISO9001,ISO14001,ISO45001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3571.00-3643.00
Packaging Details:	Wooden Box
Delivery Time:	10-14
Payment Terms:	T/T
Supply Ability:	Manufacturer

Contact Now

Stainless Steel Electrostatic Interlocking Cleanroom Xenon Light Transmission Window / Pass Box

Description

Keyword:	Xenon Light Pass Box	Packing:	Wooden Box
Weight:	115KG	Warranty:	1 Year
Application:	Cleanroom	Color:	Silver
Compliance Standards:	ISO 14644 Standards For Controlled Environments.	Material:	High-grade SUS304 Stainless Steel (1.0mm Thickness)
Highlight:	Stainless Steel Cleanroom Window , Electrostatic Interlocking Cleanroom Window , Pass Box Cleanroom Window

Product Description:

Advanced Sterilization Principle: The Xenon Light Pass Box utilizes pulsed intense light technology. By ionizing the high-purity xenon gas in the lamp tube under high voltage, it releases the electrical energy stored in the
super-large-capacity capacitor instantaneously, generating pulsed intense light with an extremely short duration but extremely high energy. This intense light is hundreds of times stronger than that of ordinary ultraviolet lamps. It can effectively destroy various pathogens such as bacteria, viruses, spores, nucleic acids, and proteins, achieving rapid sterilization.
High-efficiency Sterilization Effect: Its sterilization efficiency is extremely high. Usually, it only takes 3 minutes to make the sterilization rate reach 99% or above. Compared with the sterilization time of about 30 minutes for traditional
ultraviolet lamps, it greatly shortens the disinfection time and improves work efficiency. At the same time, it also has a
strong disinfection effect on microorganisms that are difficult to handle by traditional disinfection methods, such as spores and ultraviolet-resistant bacteria. The total sterilization rate is ≥99%.
Scientific and Reasonable Design: The inner cavity is made of fully mirrored reflective materials, which can make the light of the xenon lamp reflect fully in the transfer cavity, achieving 360-degree dead-angle-free sterilization. In addition, the
transfer window is generally equipped with an electronic interlock device to ensure that the feeding door and the taking door cannot be opened simultaneously, preventing outside air from entering the clean area and ensuring the clean environment. Some products are also equipped with a bottom storage rack, which is convenient for placing items to be disinfected.
Wide Range of Application Scenarios: It is mainly applied to places with high hygiene requirements such as laboratories and clean rooms. It can carry out rapid and efficient disinfection and sterilization when transferring items between different areas, effectively avoiding cross-contamination and providing a reliable guarantee for the experimental and production environments.
Good Environmental Adaptability: This product can adapt to a certain range of temperature and humidity environments.Generally, the temperature range is between 0℃ - 80℃, and the humidity range is 30% - 98% relative humidity, enabling it to operate stably in a variety of different working environments. Moreover, some products have also passed relevant certifications such as CE, ROHS, FCC, ISO, and SGS, ensuring quality and safety.

Technical Parameters:

Application	Cleanroom
Material	High-grade SUS304 stainless steel (1.0mm thickness)
Color	Silver
Warranty	1 Year
Compliance Standards	ISO 14644 standards for controlled environments.
Keyword	Xenon Light Pass Box
Packing	Wooden Box
Weight	115KG
Model
GCC-CDC-960-XG	1156653.5CM
GCC-CDC-660-XG	1159661CM

Features:

High-efficiency Sterilization: Utilizes pulsed intense light technology to achieve a high sterilization rate in a short time.
Time-saving: Significantly shortens the disinfection time compared with traditional methods, improving work efficiency.
Reasonable Design: The fully mirrored reflective inner cavity ensures dead-angle-free sterilization; the electronic interlock device prevents contamination.
Wide Application: Suitable for various places with high hygiene requirements, such as laboratories and clean rooms.
Strong Adaptability: Can operate stably within a certain temperature and humidity range, and has passed multiple certifications, ensuring reliable quality.

FAQ:

Q1:Are you a manufacturer or a trader? Where is your factory? A1: We are a professional Purification Equipment manufacturer with a professional team of designers and engineers. Our factory is located in Guangzhou, China..

Q2:What is your delivery time? A2: It will take 10-15 days after receiving your prepayment. The specific delivery time depends on your order quantity.
