Product Description:

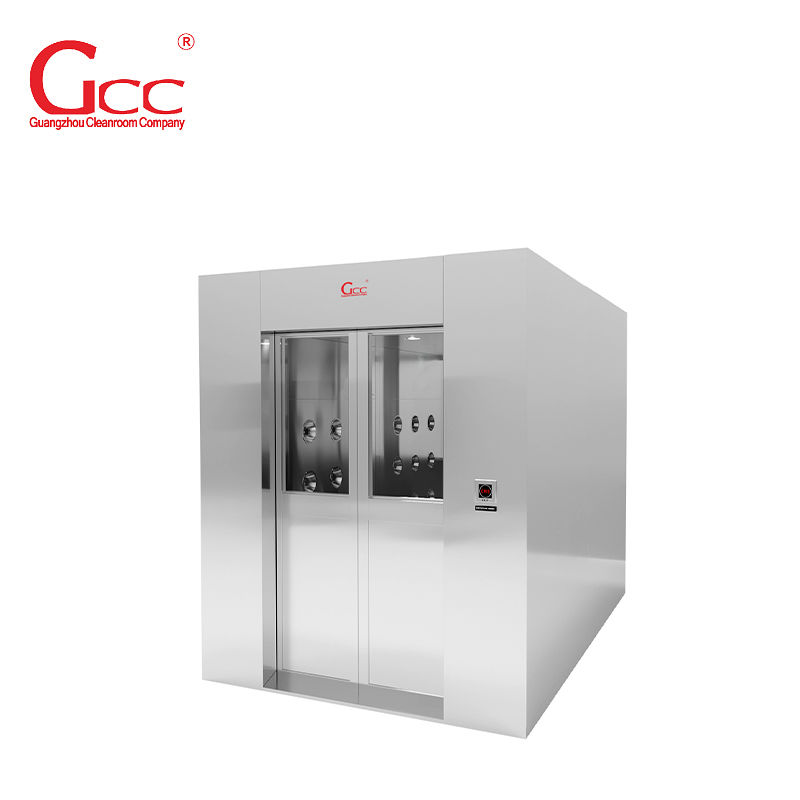

Sliding Door Air Shower
This sliding door air shower features HEPA filters with 99.99% efficiency, capturing particles ≥0.3μm. Equipped with motion sensors for automatic activation, reducing cross-contamination. Low-noise design (≤65dB) and energy-saving, perfect for high-standard cleanrooms. The door uses toughened glass for durability, with PLC control for easy operation.
Technical Specifications
| Parameter Category |
Detailed Specifications |
| Door Type |
Automatic Sliding Door (Dual-Door Interlock System) |
| Construction Material |
304 Stainless Steel / Powder-Coated Steel (Optional) |
| Filtration Efficiency |
HEPA H14 Grade (99.99% @0.3μm particles) |
| Air Velocity |
20-25m/s (Adjustable) |
| Nozzle Configuration |
12-24 Stainless Steel Nozzles (Dual-Side Arrangement) |
| Cycle Duration |
10-99 Seconds (Programmable) |
| Power Requirements |
220V/50Hz or 380V/50Hz |
| Power Consumption |
1.2-2.5kW |
| Noise Level |
≤65dB |
| Cleanroom Standard |
ISO 14644-1 Class 5 / GMP Compliance |
| Customization Options |
- Size adjustments
- UV sterilization module
- ESD protection
- RFID access control |
Applications
Pharmaceutical Industry: GMP cleanrooms, sterile preparation areas
Electronics Manufacturing: Semiconductor and LCD clean production lines
Food Processing: Packaging zones, testing labs
Research Facilities: Precision instrument rooms, biosafety labs
FAQ:
Q1: What is the air speed of the sliding door air shower?
A: Generally speaking, the air speed of the sliding door air shower is between 20 - 25m/s. Such an air speed can effectively blow off the dust particles and ensure the air shower effect.
Q2: How often should the high-efficiency filter of the sliding door air shower be replaced?
A: The replacement cycle of the high-efficiency filter depends on factors such as the frequency of use and the cleanliness of the environment. Under normal circumstances, it needs to be replaced every 1 - 2 years. However, if it is used frequently or the environment is poor, the replacement cycle may need to be shortened.
Q3: In which industries can the sliding door air shower be used?
A: The sliding door air shower is widely used in industries with high cleanliness requirements, such as electronics, pharmaceuticals, food, aerospace, and precision instrument manufacturing, for the purification of personnel and goods before entering the clean area.
