UV Sterilization Stainless Steel Pass Box For Cleanroom Material Transfer

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GCC
Certification:	ISO/GMP/CE

Detail Information

Place of Origin:

Guangdong,China

Brand Name:

GCC

Certification:

ISO/GMP/CE

Start Port:

Guangzhou

Color:

Silver

Design:

Customization

Uv Light:

Yes

Use:

Sterilizing / Disinfecting

Insider Material:

Stainless Steel 201/304

Delivery Inspection:

With Video

Uv Lamp:

Available

Highlight:

High Light

Highlight:

UV Sterilization Pass Box

Stainless Steel Pass Box

Cleanroom Material Transfer Pass Box

Trading Information

Minimum Order Quantity:

Price:

200USD

Packaging Details:

Wooden Box

Delivery Time:

14Days

Payment Terms:

T/T

Supply Ability:

5000Sets/Month

Product Description

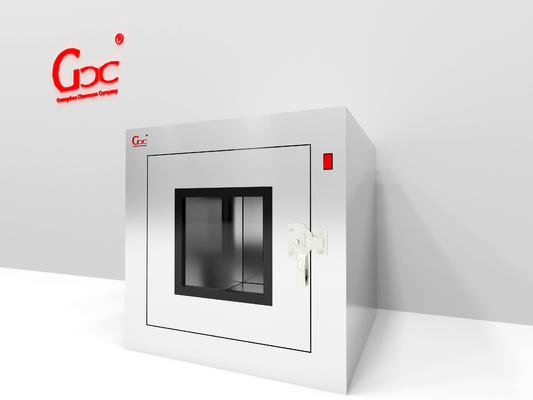

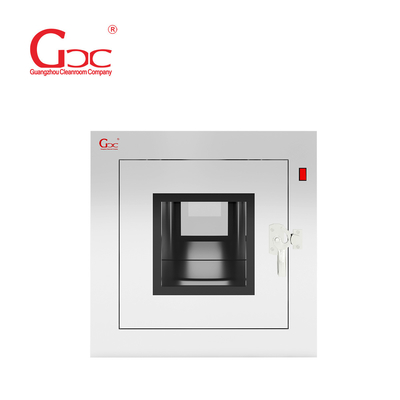

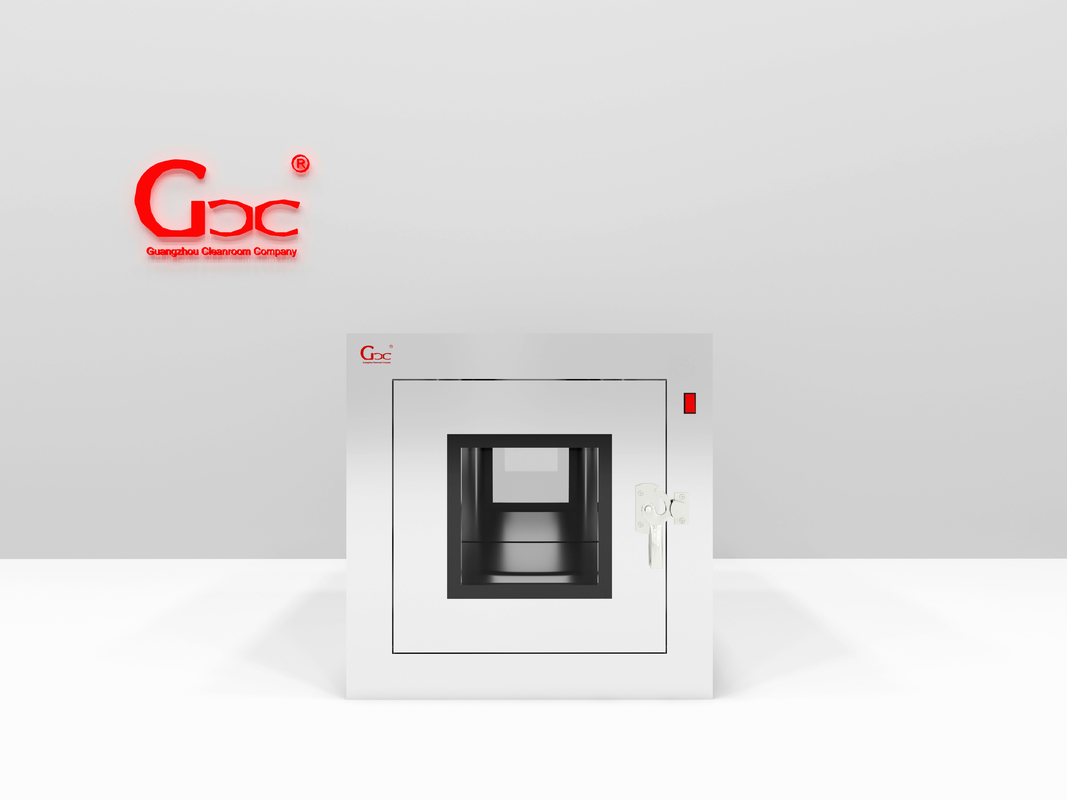

Cleanroom Pass Box With Mechanical Interlock

Cleanroom Pass Box is a closed steel box with a double door used for transferring the material from nonsterile door to sterile door inside the clean room. People uses air showers to pass through into the clean room where material uses pass boxes to get into the clean room.

Complete system for the passage of small objects between two different rooms, fully integrated and flush-fitted to the partition wall.

Cleanroom pass through box allows the aseptic transfer of materials into and out of cleanroom areas. It lessens operator traffic inside controlled facilities, thus, decreasing the risk for cross-contamination of processes and final products.

Characteristics

Made of stainless steel bladder and powder-coated steel plate cabinet.
External smooth surface easy to clean
Double doors are mechanical interlocked to prevent from cross-contamination
Dedicated sanitary rubber strip to ensure airtightness
Equipped with UV light

Parameters

Item	GCC-CDC-500-W	GCC-CDC-600-W	GCC-CDC-500-N	GCC-CDC-600-N	GCC-CDC-700-N
Product name	Pass Box
External SizeWLHmm	500W500D500H	600W600D600H	670W570D670H	770W670D770H	870W770D870H
Internal SizeWLHmm	330W430D330H	430W530D430H	500W500D500H	600W600D600H	700W700D700H
Box Material	Cold-rolled steel sheet with baked paint or stainless steel
Internal Material	stainless steel
Pass Box Classification	It can be divided into standard pass box and floor-standing pass box (without channel flooring)
Power	220V 50HZ
Optional Accessories	1. Electronic interlock 2. Mechanical interlock 3. Ultraviolet germicidal lamp 4. Walkie-talkie
Note:Besides the above sizes, we accept custom orders for non-standard sizes

Application

Widely used in clean environment, such as micro-electronics, laboratory, national defense, precise instrument, biopharming, opto-electronics, aseptic packaging, etc.
