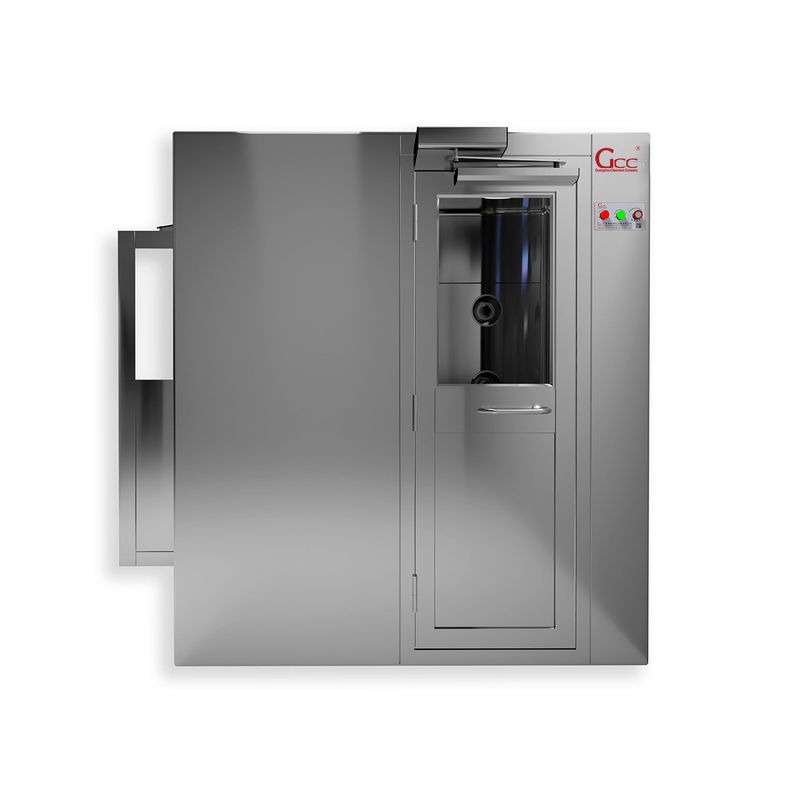

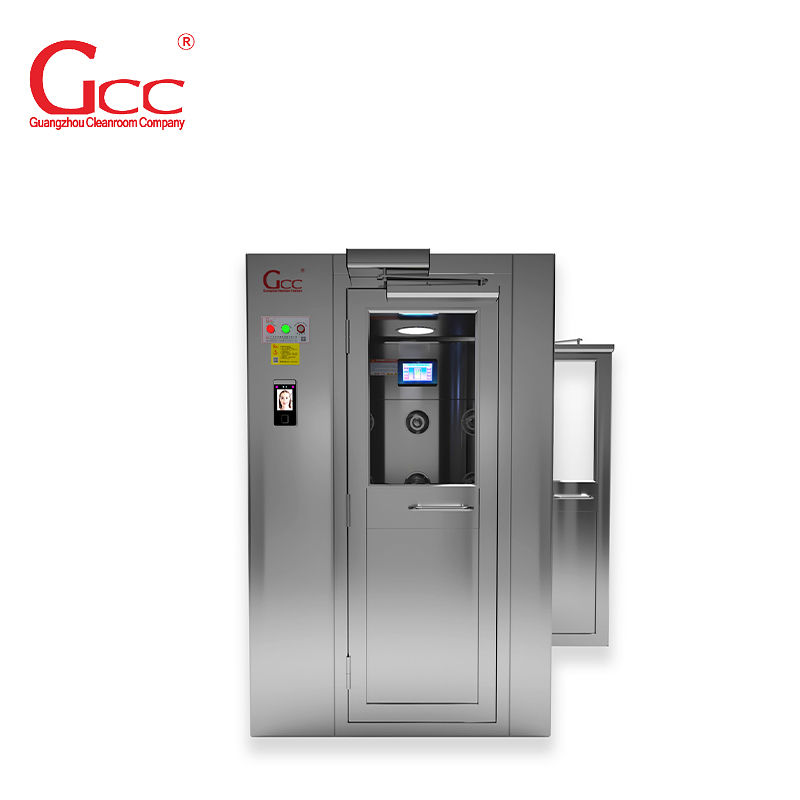

What Is a Cleanroom Air Shower?

A cleanroom air shower is an essential purification device installed at the entrance of cleanrooms to reduce particulate contamination. When personnel or goods pass through the chamber, high-velocity clean air (25–30 m/s) is blown from multi-directional stainless-steel nozzles to remove dust and particles effectively.

Contaminated air is then extracted through the base, filtered, and re-circulated, ensuring ISO-level cleanliness for demanding industrial and laboratory environments.

GCC is a leading manufacturer of cleanroom air showers, widely used in micro-electronics, semiconductors, pharmaceuticals, precision manufacturing, food processing, laboratories, and animal research facilities.

Product Highlights

1. Adjustable Clean Class

Configurable cleanroom performance—from ISO Class 5 to Class 8, depending on project requirements.

2. Real-Time Pressure Monitoring

Digital differential pressure display with automatic alarm alerts for abnormal airflow.3. Energy-Saving Technology

Equipped with an intelligent variable-frequency motor, saving 1,500+ kWh per year while maintaining stable airflow performance.

4. Global Voltage Compatibility

Supports 110V–480V electrical systems. CE / UL dual-certified models available.

5. Lifetime Technical Support

IoT-enabled remote diagnostics, plus 10-year warranty on core components.

Core Features

Fully automatic computer-controlled system with door interlocking and timed air shower.

Adjustable shower duration (0–99 seconds), displayed on the LPC control panel.

Constructed from stainless steel for durability and corrosion resistance.

HEPA filtration with 99.99% efficiency @ 0.3 μm, plus pre-filter for extended service life.

Powerful air velocity 25–30 m/s, ensuring high decontamination efficiency.

OEM customization accepted for materials, voltage, size, door types, accessories, etc.

Technical Parameters

HEPA Filter

• Size: 595×595×69 mm
• Efficiency: 99.99% @ 0.3 μm
• Air volume: 1000 m³/h
• Initial resistance: <220 Pa

Pre-Filter

• Size: 785×385×21 mm
• Efficiency: G3 level (85% @ 2 μm)
• Initial resistance: <30 Pa

Optional Configurations

• Material upgrades
• Intercom system
• UV sterilization lamp / yellow light
• Audible buzzer
• Door customization
• Custom sizes

Applications

Cleanroom air showers are widely used in:

• LCD & Optoelectronic manufacturing
• PCB and semiconductor cleanrooms
• Microelectronics and precision machining
• Dust-free coating production lines
• Aseptic packaging
• Medical & pharmaceutical facilities
• Laboratory and animal research centers
• Auto glass and high-precision component factories

FAQ

Q1: Will multiple users reduce the blowing efficiency?

A: No. GCC air showers use multi-zone airflow control, maintaining ≥65 ft/s wind speed even with up to 6 users. Test reports are available upon request.

Q2: Is the air shower suitable for tropical climates in Southeast Asia?

A: Yes. IP65-rated motors operate stably at 40°C / 95% RH, proven in Thai seafood factories, Singapore electronics plants, and Malaysian palm-oil facilities.

Q3: What is the emergency power-off method?

A: All units are equipped with a dual safety system:

• Red emergency stop button
• Mechanical door release

Compliant with EN ISO 13850 requirements.

Q4: How do you ensure no damage during international shipping?

A: Export-standard packaging includes:

• Steel-reinforced wooden crates
• Anti-moisture desiccants
• Edge protectors

We maintain a zero-damage record since 2006.

Q5: What about after-sales support?

A:

• 24-hour onsite service in Asia
• 72-hour support for Europe / Americas
• Loaner units available
• 10-year warranty on core components
