BIBO Bag In Bag Out Protective System Filtration Device

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GCC
Certification:	ISO/GMP/CE

Detail Information

Place of Origin:

Guangdong,China

Brand Name:

GCC

Certification:

ISO/GMP/CE

Automation:

Fully Automatic

Installation:

Easy To Install

Coating Width:

500mm/1000mm/1300mm/1600mm

Filling Accuracy:

±1%

Production Line Length:

10m

Feature:

PLC Control,HMI

Filling Volume:

5ml-100ml

Power:

15-30KW

Type:

Automatic

Warranty:

1 Year

Function:

Mixing, Granulating, Coating

Weight:

1000kg

Capacity:

1000 Units/hour

Operating Temperature:

Room Temperature

Automation Level:

Fully Automatic

Highlight:

High Light

Highlight:

BIBO Protective System

Bag In Bag Out Protective System

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

Wooden Box

Delivery Time:

14Days

Payment Terms:

T/T

Supply Ability:

5000Sets/Month

Product Description

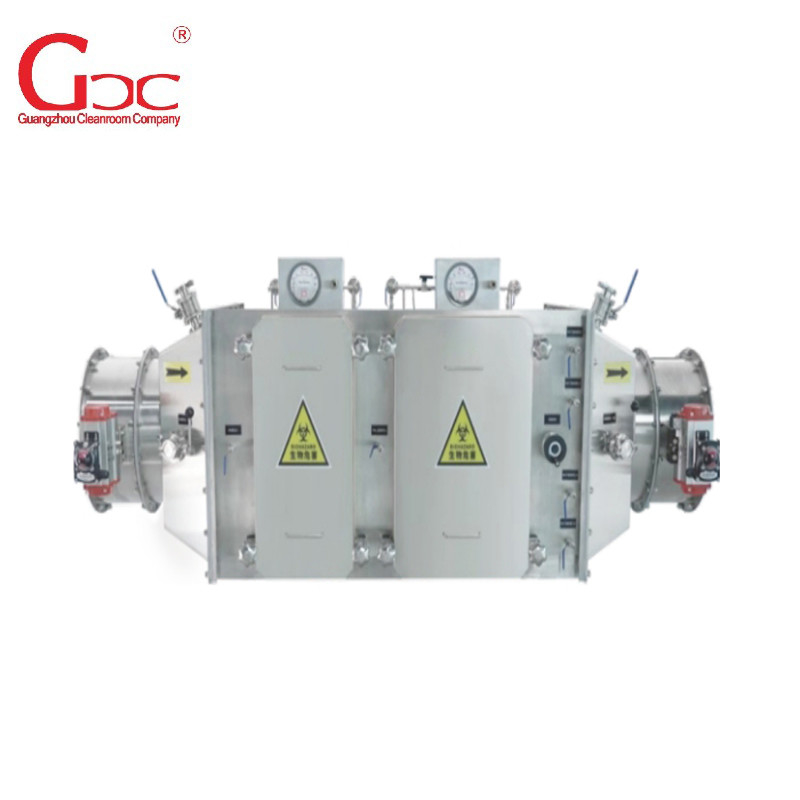

The BIBO (Bag In Bag Out) Protection System is an advanced air filtration and safety solution designed for highly hazardous environments. It is specifically engineered to handle dangerous air pollutants, including radioactive particles, toxic chemicals, biological agents, and other hazardous contaminants.

The system features a sealed filtration mechanism that ensures zero exposure during filter changes. Its unique "Bag In Bag Out" (BIBO) design allows for the safe containment and removal of contaminated filters, preventing any leakage into the surrounding environment. This makes it ideal for use in pharmaceutical labs, nuclear facilities, chemical plants, and biomedical research centers where worker safety and contamination control are critical.

Product Specifications

Parameter	Technical Data
Filtration Efficiency	HEPA H13-H14 / ULPA U15-U17 (EN 1822)
Airflow Capacity	500–10,000 m³/h (customizable)
Filter Type	HEPA/ULPA, Carbon, Pre-filters
Sealing Mechanism	Double-gasket, inflatable seal, or clamp-seal options
Material	Stainless steel 304/316, powder-coated steel
Pressure Resistance	Up to 2500 Pa (depending on model)
Operating Temperature	-20°C to 80°C
Applications	Nuclear, pharmaceutical, chemical, biotech, semiconductor

Key Features

1. 100% Sealed Operation

No exposure risk during filter replacement due to the hermetic BIBO mechanism.
Double containment bags ensure safe disposal of contaminated filters.

2. High-Efficiency Filtration

Compatible with HEPA (H13-H14) and ULPA (U15-U17) filters for capturing 0.3μm–0.1μm particles.
Optional activated carbon filters for chemical/gas adsorption.

3. Safety & Compliance

Meets ISO 14644, EU GMP, OSHA, and ASME N509/510 standards.
Leak-tested to ensure no cross-contamination.

4. Flexible Configurations

Available in horizontal & vertical designs.
Modular setup for integration into existing HVAC systems.
Automated or manual operation options.

5. Easy Maintenance

Tool-free filter replacement for quick servicing.
Pressure gauges & alarms to monitor filter status.

Frequently Asked Questions (FAQs)

Q1: What industries use BIBO systems?

A: BIBO systems are essential in pharmaceutical manufacturing, nuclear power plants, chemical processing, biotechnology, and semiconductor cleanrooms where hazardous airborne contaminants must be contained.

Q2: How does the "Bag In Bag Out" process work?

A: The contaminated filter is sealed inside a disposable bag while still inside the system. The bag is then removed and replaced with a new filter—all without exposure to the operator or environment.

Q3: Can BIBO systems handle radioactive dust?

A: Yes, BIBO systems are widely used in nuclear facilities to safely contain and dispose of radioactive particulate matter.

Q4: How often should filters be replaced?

A: Replacement depends on contaminant load, but most systems include pressure sensors to indicate when filter changes are needed.

Q5: Are BIBO systems customizable?

A: Yes, they can be tailored for different airflow rates, filter types, and sealing mechanisms based on application requirements.

Q6: What maintenance is required?

A: Regular integrity testing (DOP/PAO testing) and seal inspections ensure optimal performance.

Why Choose Our BIBO System?

✔ Zero-leakage guarantee with advanced sealing tech
✔ Compliant with global safety standards
✔ Customizable for high-risk environments
✔ Reduces operational downtime with easy maintenance
