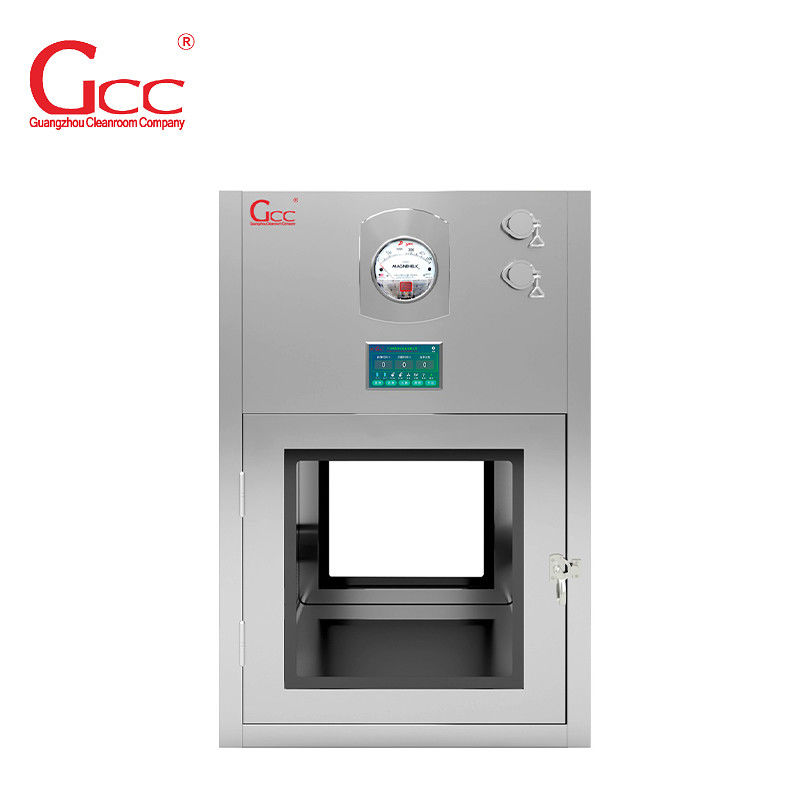

Class 100 Dynamic Mechanical Cleanroom Pass Box

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GCC
Certification:	ISO/GMP/CE
Model Number:	PBS

Detail Information

Place of Origin:

Guangdong,China

Brand Name:

GCC

Certification:

ISO/GMP/CE

Model Number:

PBS

Product Name:

Pass Box

Type:

Dynamic Pass Box

Interlock:

Electrical/ Mechanical

Warranty:

1 Year

After-Sales Service:

Online Support

Quality Check:

Delivery Inspection Video

Highlight:

High Light

Highlight:

Dynamic Cleanroom Pass Box

Electrical Cleanroom Pass Box

Class 100 Dynamic Pass Box

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

Wooden Box

Delivery Time:

14Days

Payment Terms:

T/T

Supply Ability:

5000Sets/Month

Product Description

Stainless Steel Dynamic Transfer Hatch For Cleanroom

Standard Pass-Thrus

A pass-through, or pass-thru, is an enclosed space with doors on opposite sides that acts as an airlock in a cleanroom to allow for the transfer of materials between the cleanroom and another space.

Pass-throughs minimize the contaminant transfer and help maintain the cleanroom environment. A cleanroom pass-through can be floor or wall mounted, and can take the form of a cabinet, chamber, or window.

Clean Air Products provides a full line of standard pass-thru cabinets, pass-thru chambers, and pass-thru windows. A range of sizes and configurations are available to meet your unique requirements. We also offer custom pass-throughs that can be tailored to your specifications.

Products Specification

Model	GCC-PBS500	GCC-PBS600	GCC-PBS700
External Size (WDH)	700x570x1050mm	800x670x1150mm	900x770x1250mm
Work Zone (WDH)	500x500x500mm	600x600x600mm	700x700x700mm
Purification rank	Class 100
Material (Option)	Entirety Sus304.(T=1.2/1.5mm) Entirety sus201. (T=1.2/1.5mm) External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

Control System	Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. Pass Box inside bottom corner is round shape without any dust accumulation . Double layer vacuum glass have very good appearance Software computer interlocking door with long time using life Air speed is 0.45m/s adjustable
UV Light	1 Pcs
Power Supply	220V/50Hz
packing Size	800x870x1300mm	1000x870x1400mm	1100x970x1500mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Quality Control

Factory testing (all the sets you ordered):

All of equipment is individually factory tested for safety and performance in accordance with international Standards.

Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

appearance testing
functional test and visual inspection
electrical safety tests
air velocity testing
noise testing

Warranty

Our equipment is warranty for 2 years excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.
