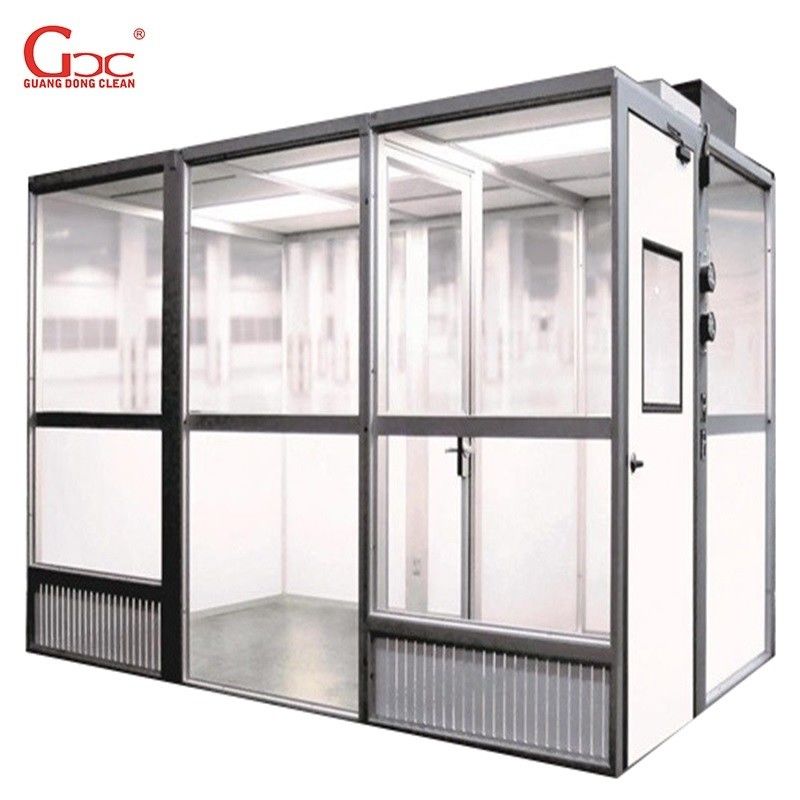

Air Cleanliness Control 9pcs FFU 50m2 Pharmacy Clean Room

Air Cleanliness Control 9pcs FFU 50m2 Pharmacy Clean Room
Air Cleanliness Control 9pcs FFU 50m2 Pharmacy Clean Room

Large Image :  Air Cleanliness Control 9pcs FFU 50m2 Pharmacy Clean Room

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: QS/SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 14-30 Workdays
Payment Terms: T/T, L/C
Supply Ability: 1000 Sets/Month

Air Cleanliness Control 9pcs FFU 50m2 Pharmacy Clean Room

Description
Project: Modular Cleanroom Style: Simple
Frame: Aluminum Profile, Stainless Steel Profile, Steel Profile Wall: Magnesium Sandwich Panel
Characteristic: Control Air Cleanliness Using Field: Workshop
Highlight:

50m2 Pharmacy Clean Room

,

9pcs FFU Pharmacy Clean Room

,

9pcs FFU pharmaceutical clean room

Modular Cleanroom

Cleanrooms provide an economical yet versatile solution to cleanroom construction. These softwall cleanrooms can be used in materials development, medical devices, semiconductor or other industries where cleanroom conditions are required. Soft wall cleanrooms have the added advantages of being portable, easy to assemble and ideal for applications where the cleanroom may need to be expanded to meet future requirements.

Unlike permanent, hard wall cleanroom systems, soft wall cleanrooms feature plastic, often translucent strips suspended from a ceiling or other high point of attachment. They can also be enclosed by tightly stretched fabric on a frame.

Semiconductor fabrication, medical testing, biotechnology research, and other very sensitive processes can be conducted in soft wall cleanrooms. Many processes that don't require extreme levels of decontamination can be conducted within soft wall cleanrooms.

They are often easily installed, and some varieties are portable; these qualities can make soft wall cleanrooms more economical than hard wall alternatives, especially for smaller-scale operations that don't require constant access to a strictly controlled working environment. When combined with other control measures like protective clothing for workers (such protective clothes are sometimes called bunny suits), air filters, and double doors, soft wall cleanrooms are capable of achieving high levels of decontamination.



Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms



Level Maximum Particles/m3 Equivalent
  ≥0.1 μm ≥0.2 μm ≥0.3 μm ≥0.5 μm ≥1 μm ≥5 μm
ISO 1 10b d d d d e
ISO 2 100 24b 10b d d e
ISO 3 1000 237 102 35b d e Class 1
ISO 4 10000 2370 1020 352 83b e Class 10
ISO 5 100000 23700 10200 3520 832 d,e,f Class 100
ISO 6 1000000 237000 102000 35200 8320 293 Class 1,000
ISO 7 c c c 352000 83200 2930 Class 10,000
ISO 8 c c c 3520000 832000 29300 Class 100,000
ISO 9 c c c 35200000 8320000 293000 Room Air



Specification Table



Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed (m/s) 0.45m/s ±20% 0.45m/s ±20%
Temperature (optional) 18-28°C
Humidity (opiional) 50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw



Why Choose Us



Gcc is one of the leaders in modular cleanrooms industry that can provide you with the most cost-effective cleanroom solutions according to your require or give you professional advice.
