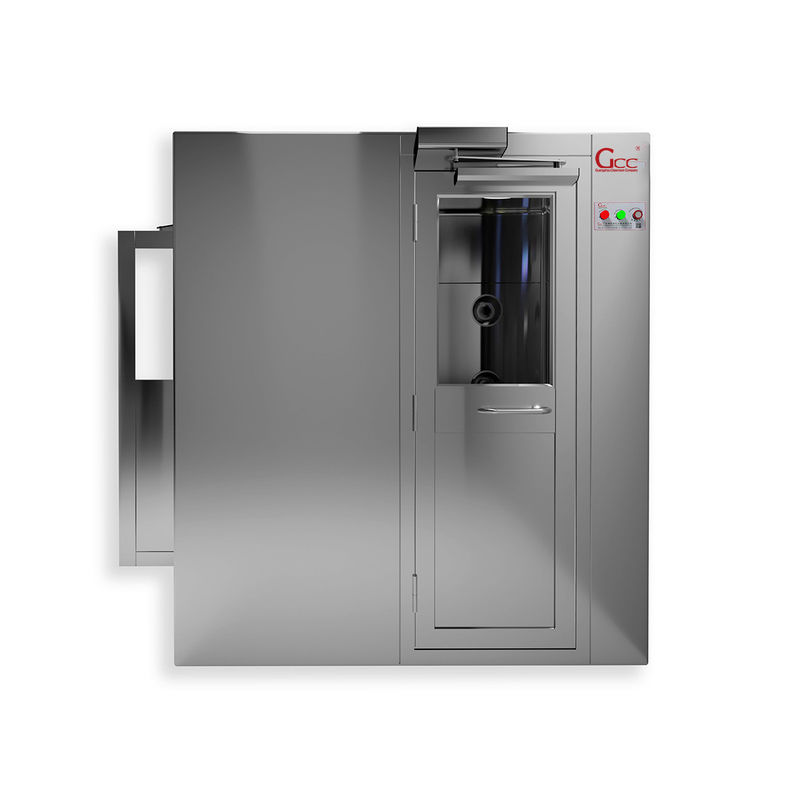

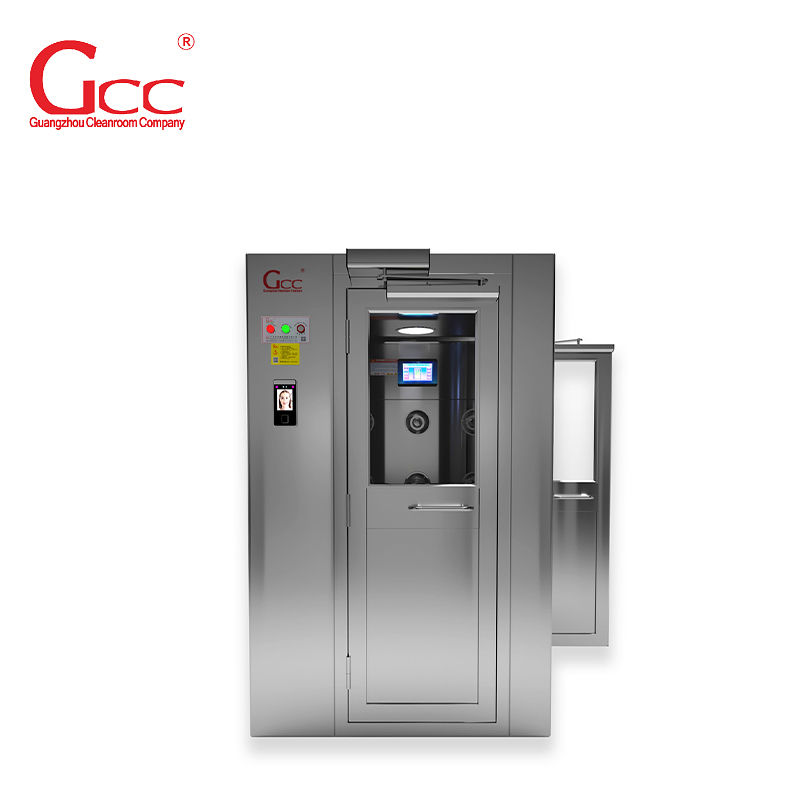

Cleanroom Air Shower Tunnel
Cleanroom air shower tunnel is mainly composed of cabinet, fans, filters, nozzle, electric control system of five parts. Main body is made by 1.2mm cold plate coating, stainless steel for the base.Cleanroom air shower tunnel is mainly composed of cabinet, fans, filters, nozzle, electric control system of five parts. Main body is made by 1.2mm cold plate coating, stainless steel for the base.Cleanroom air shower tunnel adopts photoelectric control, electric interlock, automatic blow. Air shower time is adjustable, compact structure, easy to use.the operator is maximum dust source in working space , Air shower room, a purifying equipment being able to clean the dust adhering to the surface of human body and articles, preventing the unclean air invade into the clean room.To meet the cleanliness requirement of clean room with the help of air-conditioning system in the clean room. air shower room adopts photoelectric control, electric interlock, automatic blow. Air shower time is adjustable, compact structure, easy to use.the operator is maximum dust source in working space , Air shower room, a purifying equipment being able to clean the dust adhering to the surface of human body and articles, preventing the unclean air invade into the clean room.
Features
1.Infrared induction automatic door system: the most different between general air shower and automatic air show is that automatic air shower cancelled manual door closer, achieved interlocking system and infrared sensing automatic door opening system.
2.Intelligent control chip is widely used: automatic sound tips, automatic control system, emergency stop system, these all systems give user more safety and convenient.
3. High degree of automation: it avoids pollution from dirty air and dust and develop our technology.
Specification
| Item |
GCC-AS-1000 |
| Material |
Stainless Steel |
| Internal Size |
790*860*1910mm |
| External Size |
1200*1000*2050mm |
| Efficiency |
99.99%@0.3μm,G3 |
| Voltage |
110V |
| Air Volume |
1200m³/h |
| Fan Rotate Speed |
2800R/min |
| Wind Speed |
≥25-30m/s |
| Showering Time |
0-99s( adjustable) |
Noise
(The noise was measured from a meter away) |
＜62dB |
| Remark |
Can Be Customized |
Consumable parts illustrations
1. Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2. HEPA air filter: each one should be replacement in each half and one years.
Service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available; 5.Providing first-class after-sales services to the customers.
Quality Control
a. Checking raw material before producing.
b. Checking one by one before the assembling
c. Checking one by one during the production
d. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Application Fields
Electronic, microelectronics, precision electronic, biological manufacturing industry, the medical industry, food processing, ITO mode, liquid crystal and conductive photoelectric suggests that the industry, PCB, SMT manufacturing industry, aerospace, automobile manufacturing industry, dust-free painting industry and other industries.
