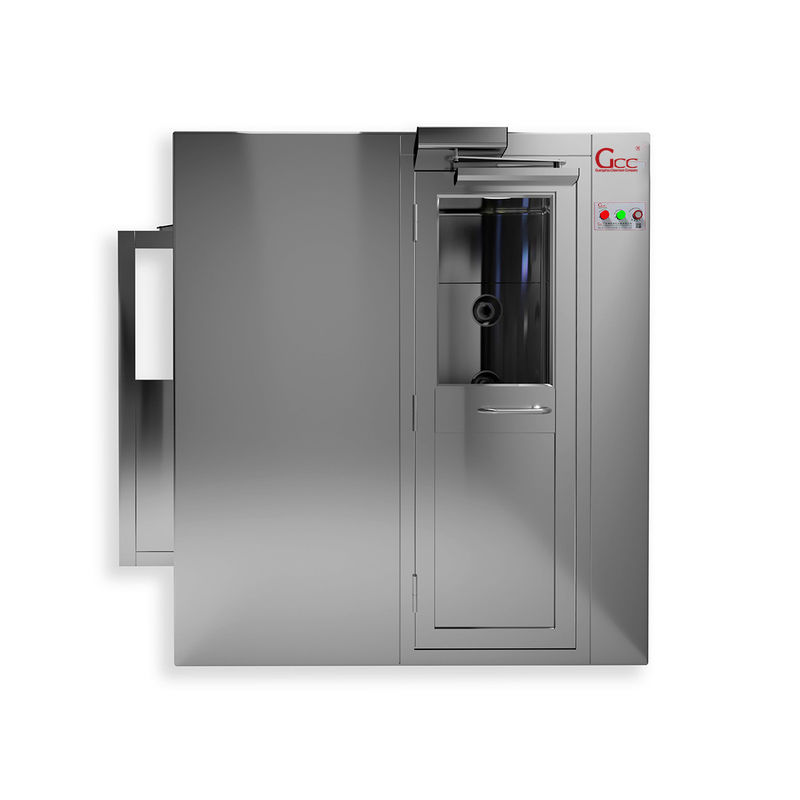

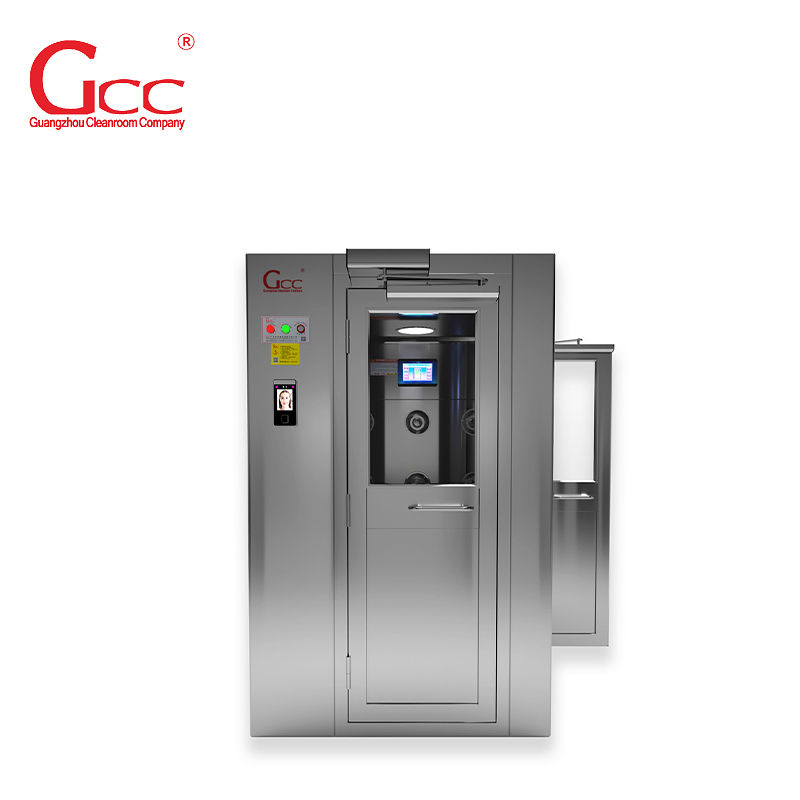

Cleanroom Entrance With Air Filtration System
Cleanroom air shower are generally constructed from cleanroom-compatible steel or plastic materials and feature electronically-powered blowers, filters and high-pressure jet nozzles, they all being incorporated into the walls. Air, at velocities of 3,000 to 7,000 feet-per-minute (FPM), continuously streams from the jet nozzles for 30–45 seconds. Personnel inside the enclosure will lift their arms and turn their bodies for uniform exposure to the air streams, a procedure usually specified in protocol. Air currents from the jets create shearing and flapping forces, which lift and remove contaminants from both flat surfaces and the creases of garments. This process effectively removing 99.97% loose particulate matter form cleanroom air shower which particles greater than 0.3 µm diameter.
Features
1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
3. Made of stainless steel.
4. Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25·30m/s.
6. OEM is acceptable.
Parameters
| Item |
GCC-AS-1000 |
GCC-AS-2000 |
GCC-AS-3000 |
| Size |
Internal Size |
L1000*W1200*H2050mm |
L2000*W1200*H2050mm |
L3000*W1200*H2050mm |
| External Size |
L860*W790*H1910mm |
L1860*W790*H1910mm |
L2860*W790*H1910mm |
| Capacity |
1-2 people |
2-4 people |
3-6 people |
| Nozzle |
Quantity |
12pcs |
24pcs |
36pcs |
| Wind Speed |
≥25~30m/s |
| Noise |
＜62dB |
| Blower |
Quantity |
1pc |
2pcs |
3pcs |
| Revolution Speed |
2800r/min |
| Hepa- Filter |
Quantity |
1pc |
2pcs |
3pcs |
| Air Flow |
1000m³/h |
| Efficiency |
99.99%@0.3μm |
| initial resistance |
＜220pa |
| Pre- Filter |
Quantity |
1pc |
2pcs |
3pcs |
| Efficiency |
85%@02μm |
| initial resistance |
＜30pa |
| Voltage, Power |
220V/50Hz,750W |
Alternative Configurations
a. Material
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Door
f. Size
Consumable Parts Illustrations
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.
Service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available; 5.Providing first-class after-sales services to the customers.
Quality Control
a. Checking raw material before producing.
b. Checking one by one before the assembling
c. Checking one by one during the production
d. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Application Fields
Paint curing line, Fuel room, Dust-free workshop, Hospital operating room, Pharmaceutical workshop, Electronics factory.
