Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets

Certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
China Guangzhou Cleanroom Construction Co., Ltd. certification
I'm Online Chat Now

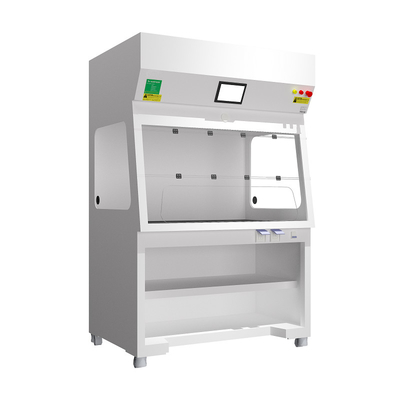

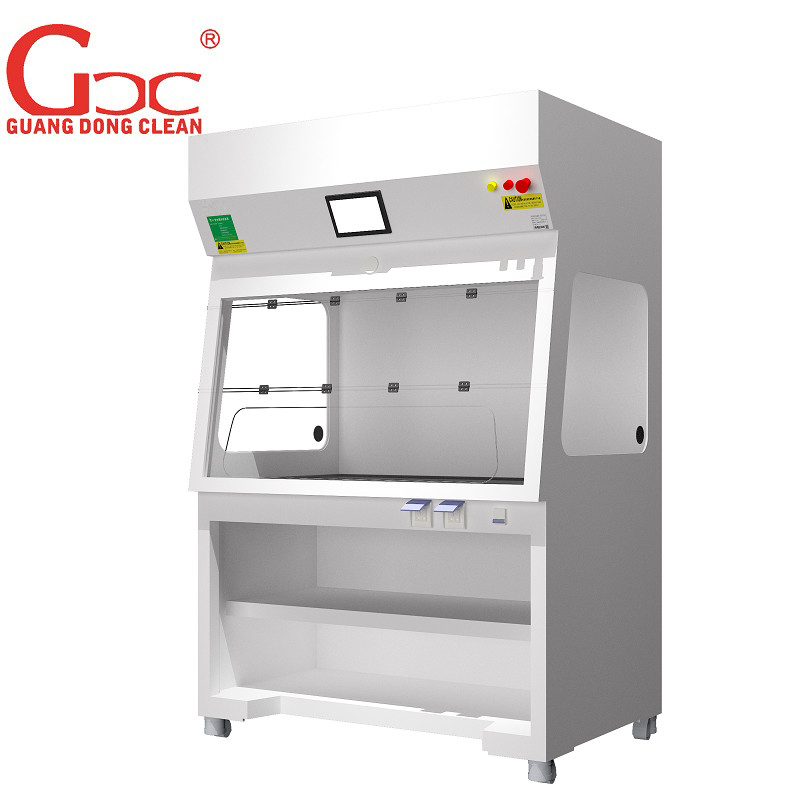

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets
Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets

Large Image :  Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets

Product Details:
Place of Origin: China
Brand Name: GCC
Certification: CE
Model Number: Ductless Fume Hood
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 2000/set
Packaging Details: Plywood Box / Woden Box
Delivery Time: 7-14 Workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Sets/Month

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets

Description
Keyword: Ductless Fume Hood Material: Polypropylene/ Metal / Stainless Steel
Application: Laboratory, Pharmaceutical GMP Laboratory, Sample Ratio And Weigh Voltage: 220V/50HZ
After-Sales Service: Online Support Usage: It Can Be Used For Stirring, Liquid, Pistol, Weighing, Rotation, Mixing, Ultrasonic Cleaning, Teaching Demonstration, Infrared Analyzer, Enzyme Target, Microwave Anti -solution, High -efficiency Liquid Chromatography, COD Experiment, And So On.
Advantage: Low Installation Costs Filters Tyep: Several Types Fo Carbon Filters Can Be Chosen
Feature: Simple Use And Safe Operation Function: Remove Hazardous Fumes, Vapors And Particles
Filter: Organic Gases, Inorganic Gases, Formaldehyde, Ammonia
Highlight:

Laboratory Laminar Fume Hood Cupboard

,

Ductless Laminar Fume Hood Cupboard

PP Ductless Fume Hood Lab Chemical Fume Hooded for Sale Laboratory Laminar Fume Hood Cabinets

Stable quality

1. 7 -inch LCD touch screen, the display effect is clear, the touch is sensitive;
2. High -quality fan, ultra -mute without spark static electricity, suitable for running under bad air medium, stable performance life "6000 hours;
3. The cabinet material mainly includes anticorrosive PP polypropylene plates and stainless steel, which has good smoothness and strong corrosiveness;
4. The operating surface uses high -light photosyl Aklai board, which is very resistant to operability, excellent anti -chemical performance, visible in the cabinet;
5. Epoxy resin tables have high -quality chemical stability, super corrosion resistance, high temperature resistance, non -delay, cracking, long life surface;
6. Patent filter, internal filling of high -quality chemical filter materials, adsorption efficiency meets industry standards, and uses the service life for 1.5 years.

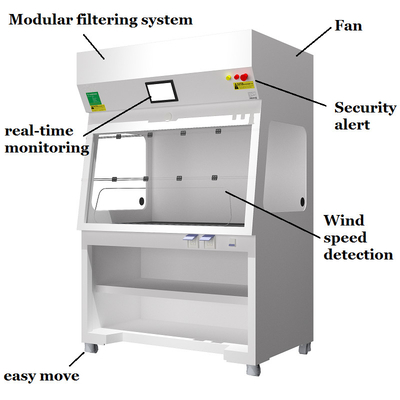

Simple use, safe operation

1. Temperature and humidity monitoring system: Show the temperature and humidity of the operating area in real time, you can set the alarm value;
2. Fan monitoring system: control the switch of the fan, monitor the operating status of the fan, the fan fails to alarm, the wind speed can be adjusted;
3. Facial wind speed monitoring system: Set the surface wind speed alarm value to display the current runtime wind speed, monitor the operating status, and remind users to adjust the fans speed in a timely manner to control the toxic substances without leakage;
4. Filter saturation monitoring system: set the filter saturation alarm value, corresponding VOC concentration level, online monitoring the saturation state of the filter, timely remind users to replace the filter to ensure product safety;
5. Automatic control system: automatic adjustment of wind speed to ensure that the facial air speed is stable between 0.4-0.6m/s when the machine is running;
6. Follow the industry standards JG/T385-2012, and the harmful gas emission after filtration is in line with GBZ2.2-2007, filtering efficiency <1%, TWA value ≤ PPM, face speed 0.4-0.6m/s; 7. Modular filtering system: The corresponding filter can be used for different substances such as gas, powder, and the effect is better.

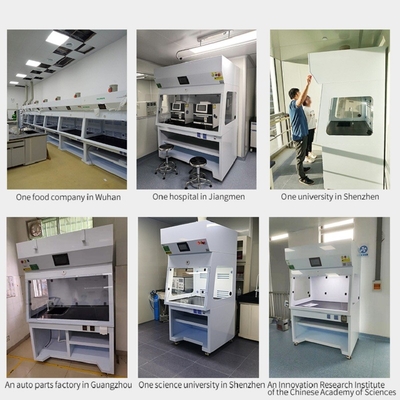

Application

The constant temperature and constant pressure laboratory, pharmaceutical GMP laboratory, sample ratio and weighing, solvent cleaning, pre -sample processing, chromatography laboratory, high -efficiency teaching and classroom demonstration, clean room, forensic organization, and laboratory.
It can be used for stirring, liquid, pushes, weighing, rotating, mixed, ultrasonic cleaning, teaching demonstration, infrared analyzer, enzyme standard, microwave anti -dissolving, high -efficiency liquid chromatography, COD experiments, and so on.

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 0

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 1
Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 2
Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 3
Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 4

Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 5Laboratory Laminar Fume Hood Cupboard PP Ductless Fume Hood Cabinets 6






Air Flow Pattern

Exhaust Principle
1. Dirty room air is drawn into the front of the fume hood.
2. Room air mixes with potentially contaminated air from chamber and is pulled upward by the bulding exhaust.

3. Air split at back of hood increases exhaust and reduces turbulence.
4. Contaminated air drawn from fume hood by building exhaust fan and leaves through air stacks on room





Fume Hood Parameters


Item

GCC-FH-1200

GCC-FH-1500

GCC-FH-1800

Internal Size

L1000*W700*H2350mm

L1300*W700*H2350mm

L1600*W700*H2350mm

External Size

L1200*W800*H700mm

L1500*W800*H700mm

L1800*W800*H700mm

Wind Speed

0.3~0.8m/s

Noise

<65dB

Air Flow

1200m³/h

1800m³/h

2300m³/h

Efficiency

99.99%@0.3μm

Voltage

220V/50Hz
