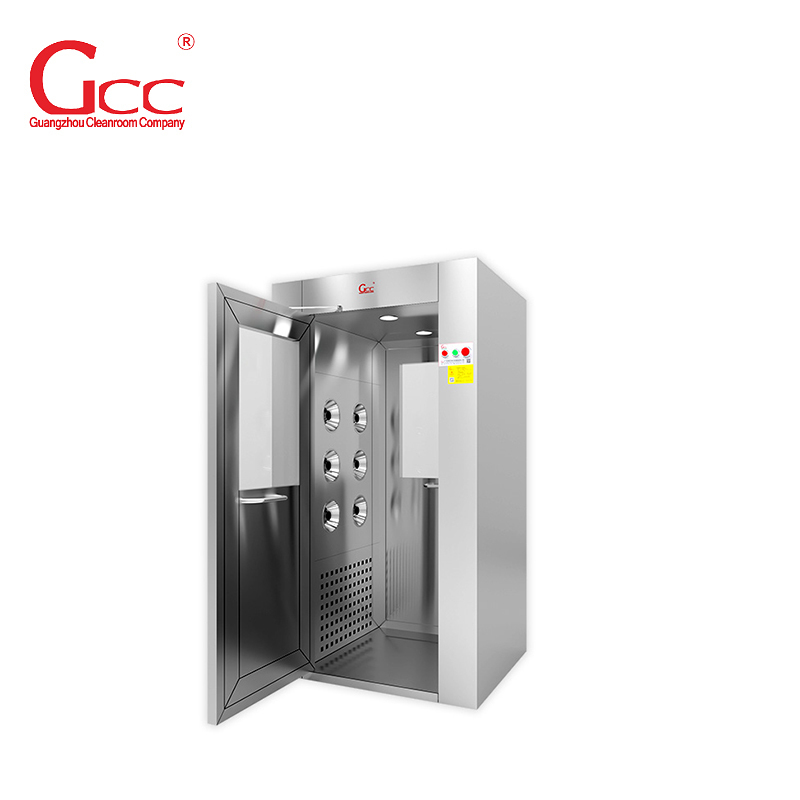

The shower room is a facility for personnel cleaning. It is usually set up at the entrance of places with high hygiene requirements, such as clean workshops, laboratories, etc. When people enter the shower room, there will be a spraying device that sprays water or cleaning fluid to rinse the whole body of people to remove dust, stains, etc. on them, so as to ensure that people entering a specific area remain in a clean state and reduce the risk of pollution to this area.
【Core Application Industries】
1. Pharmaceutical Industry: Changing room buffer zones for sterile preparation workshops and vaccine production lines
2. Medical Devices: Personnel passages in clean zones for implant production
3. Electronics Industry: Entrances to cleanrooms for semiconductor/LCD panel manufacturing
4. Food Processing: Packaging workshops for infant formula/health food production
5. Research Institutions: Protective passageways for biosafety laboratories
6. Precision Manufacturing: Production areas for optical lenses/aerospace components
【Technical Specifications】:
1. Structure: Mirror-finished stainless steel interior/anti-static coating
2. Configuration: Infrared sensor auto-activation/emergency stop button
3. Cleanliness: Maintains ISO Class 5 environment
4. Optional Features: UV sterilization/voice prompt system
5. Energy Consumption: ≤1.2kW·h/cycle)
【Alternative Configuration】:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Features
1.Mechanical interlocking door, automatically blow and shower.
2.Duration for showering can be adjusted prompt. It is easy to operate with membrane touch switches.
3.Floor and nozzles are made of quality stainless steel.
4.85%@02μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5.Air velocity can up to 25m/s. professional and fast design.
6.non-standard products
Parameters
| Item |
GCC-FLS1200*1000 |
GCC-FLS1200*2000 |
GCC-FLS1200*3000 |
| External SizeW*L*Hmm |
1200*1000*2200 |
1200*2000 *2200 |
1200*3000*2200 |
| Internal SizeW*L*Hmm |
800*930*1910 |
800*19301910 |
800*2930*1910 |
| User |
2 |
4 |
5 |
| Power Supply |
380v/50hz/750w |
380v/50hz/750W |
380v/50hz/750w |
| Fan Air Volume |
1200m³/h |
1200m³/h |
1200m³/h |
| Fan Speed |
2800R/min |
2800R/min |
2800R/min |
| Air Velocity |
25-30m/s |
25-30m/s |
25-30m/s |
| Stainless Steel Nozzles |
12pcs |
24pcs |
36pcs |
| Noise |
<62dB |
<62dB |
<62dB |
| HEPA Filter |
Size |
595*595*69mm |
595*595*46mm |
595*595*46mm |
| Efficient |
99.99%@0.3um |
99.99%@0.3um |
99.99%@0.3um |
| Air Volume |
1000m³/h |
1000m³/h |
1000m³/h |
| Initial Resistance |
<220pa |
<220pa |
<220pa |
| Pre-Filter |
Size |
785*385*21mm |
785*385*21mm |
785*385*21mm |
| Efficient Level |
G1 |
G1 |
G1 |
| Air Volume (m/h) |
82%@2um |
82%@2um |
82%@2um |
| Initial Resistance |
<30pa |
<30pa |
<30pa |
| Control System |
Microcomputer control system, LED display blow-off time (10-999s adjustable), photoelectric sensing. |
| Note:Besides the above sizes, we accept custom orders for non-standard sizes |
FAQ
Q1:.How about delivery time?
A:Within 7-15 workdays after receiving deposit.
Q2: How about validity of quotation ?
A:Usually 30 days as the shipping freight and exchange rate can be fluctuant.
Q3:How about the package?
A:Bubble film + Cotton +Standard export wooden case.
Q4:How to inspect the goods?
A:Products will be checked by our QC staff frist, then our proejct manager. Client can come and check by themselves or third party check is available.
Q5:Can we visit your factory ?
A:Sure, welcome to visit our factory if you come to China.
