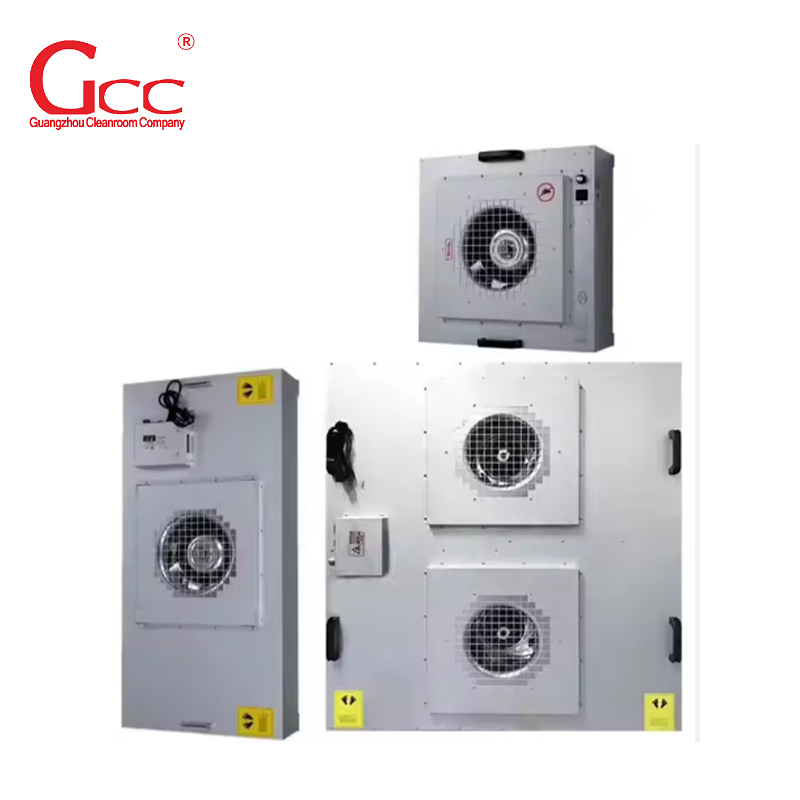

Cleanroom Fan Filter Unit with Hepa Filter
Cleanroom fan filter unit (FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.
The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.
Features
1. FFU shell and HEPA filter adopt split design,easy to install and replace,
2. Microprocessor control system, energy-saving and low noise,
3. Long service-life blower,up to 100,000 hours,maintenance-free and small vibration,
4. Suitable for using separately or connecting together for assembly line,
5. Made of aluminium coated zinc plate, anti-corrosion,rust-proof and light weight.
Parameters
| Item |
GCC-FFUA-1 |
GCC-FFUA-2 |
GCC-FFUA-3 |
GCC-FFUA-4 |
| Size (WxLxH) |
575x875x275mm |
920x615x275mm |
575x1175x275mm |
615x1225x275mm |
| Air Flow |
800~900m³/h |
800~900m³/h |
1100~1200m³/h |
1100~1200m³/h |
| Air Velocity |
0.35~0.55m/s |
| Total Pressure |
230Pa |
230Pa |
230Pa |
230Pa |
| Power |
100W |
100W |
100W |
100W |
| Weight |
25kgs |
27.5kgs |
34kgs |
37.5kgs |
Noise
(1m below the HEPA filter) |
55~63dB |
| Vibration |
0.2~0.7mm/s |
| Control Mode |
Manually Or Group Control Dy Computer |
| Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /
Differential Pressure Drop Alarm Device
|
| HEPA Filter |
Size (WxHxD) |
570x870x69mm |
915x610x69mm |
570x1170x69mm |
610x1220x69mm |
| Efficiency |
99.99% 0.3μm |
| Frame |
High Quality Anodized Aluminum |
| Initial Pressure Drop |
110Pa@0.45m/s±15% |
| Trait |
PU Foam Endless Gasket |
Application
Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment.
