Product Description:

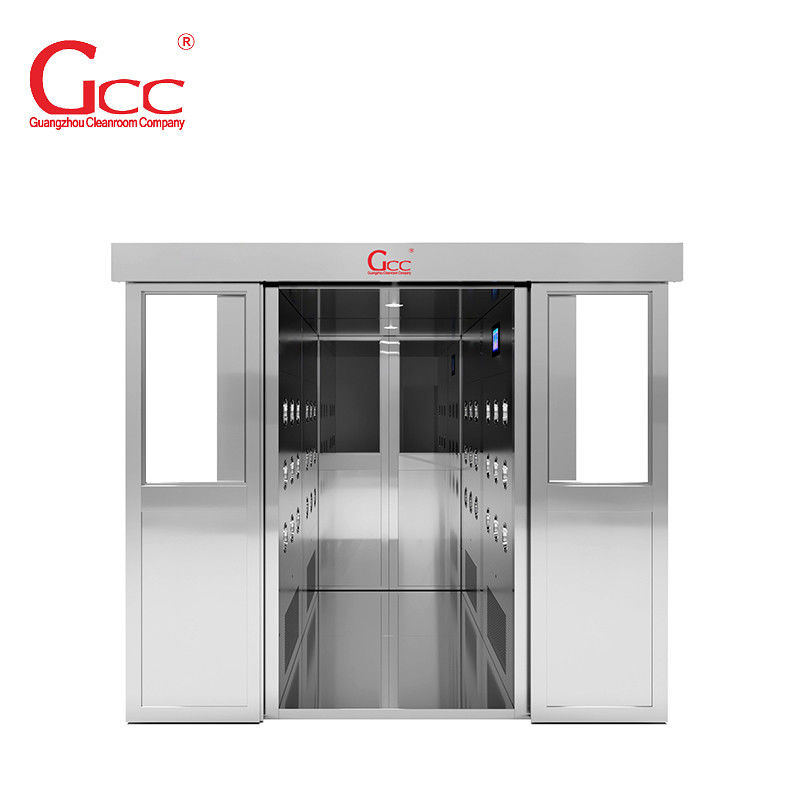

Sliding Door Air Shower
Compared to traditional air showers, the sliding door design saves 30% space, operates quietly, and improves sealing by 50%. Automated controls minimize human contact, reducing contamination risks. Ideal for narrow cleanroom entrances, with fast cycling to enhance efficiency.
Technical Specifications
| Parameter Category |
Detailed Specifications |
| Door Type |
Automatic Sliding Door (Dual-Door Interlock System) |
| Construction Material |
304 Stainless Steel / Powder-Coated Steel (Optional) |
| Filtration Efficiency |
HEPA H14 Grade (99.99% @0.3μm particles) |
| Air Velocity |
20-25m/s (Adjustable) |
| Nozzle Configuration |
12-24 Stainless Steel Nozzles (Dual-Side Arrangement) |
| Cycle Duration |
10-99 Seconds (Programmable) |
| Power Requirements |
220V/50Hz or 380V/50Hz |
| Power Consumption |
1.2-2.5kW |
| Noise Level |
≤65dB |
| Cleanroom Standard |
ISO 14644-1 Class 5 / GMP Compliance |
| Customization Options |
- Size adjustments
- UV sterilization module
- ESD protection
- RFID access control |
Applications
Pharmaceutical Industry: GMP cleanrooms, sterile preparation areas
Electronics Manufacturing: Semiconductor and LCD clean production lines
Food Processing: Packaging zones, testing labs
Research Facilities: Precision instrument rooms, biosafety labs
FAQ:
Q1: Can the air shower time of the sliding door air shower be set customarily?
A: Yes, the air shower time of the sliding door air shower can be set customarily according to actual needs, and the general setting range is between 10 - 99 seconds.
Q2: Can the air shower be interrupted during the operation of the sliding door air shower?
A: Under normal circumstances, it is not recommended to interrupt the air shower during the operation of the air shower to ensure a good purification effect. However, in case of an emergency, the air shower can be interrupted by pressing the emergency stop button.
Q3: What should I do if the door of the sliding door air shower malfunctions?
A: If the door malfunctions, such as not being able to open and close normally or the door interlock fails, first check whether the power supply and control circuit are normal, and then check whether the mechanical components of the door are damaged or stuck. If you cannot solve it yourself, you should contact a professional maintenance personnel in a timely manner.
